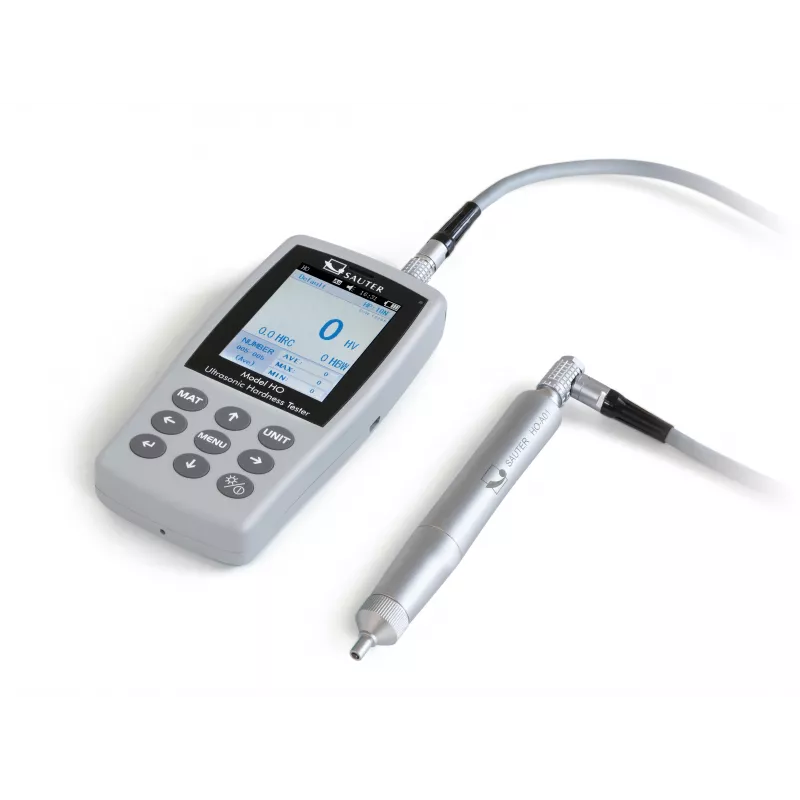

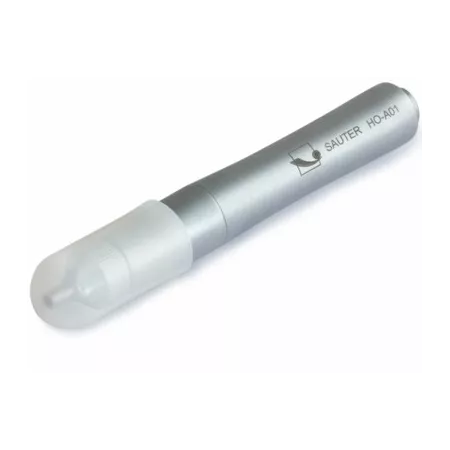

UCI-Sonde for HV 1 for hardness tester...
€4,500.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
HO 1K See specifications
Characteristics
Hardness scale:
HV 1
Option Factory calibration certificate:
Poid minimum de l‘objet en essai (g):
300 g
Épaisseur minimale de l‘objet en essai (mm):
2 mm
Rugosité de la surface de l'echantillon (µm):
RA max 3,2 µm
€5,520.00 HT
Price HT
Stock
Shipping time
Action
0
Expected to be available again on 05.02.2026.
Model
Characteristics
HO 2K See specifications
Characteristics
Hardness scale:
HV 2
Option Factory calibration certificate:
Poid minimum de l‘objet en essai (g):
300 g
Épaisseur minimale de l‘objet en essai (mm):
2 mm
Rugosité de la surface de l'echantillon (µm):
RA max 5 µm
€5,520.00 HT
Price HT
Stock
Shipping time
Action
3
Available from stock
48 - 72h
Model
Characteristics
HO 5K
Characteristics
Hardness scale:
HV 5
Option Factory calibration certificate:
Poid minimum de l‘objet en essai (g):
300 g
Épaisseur minimale de l‘objet en essai (mm):
2 mm
Rugosité de la surface de l'echantillon (µm):
RA max 10 µm
€5,520.00 HT
Price HT
Stock
Shipping time
Action
16
Available from stock
48 - 72h
Model
Characteristics
HO 10K
Characteristics
Hardness scale:
HV 10
Option Factory calibration certificate:
Poid minimum de l‘objet en essai (g):
300 g
Épaisseur minimale de l‘objet en essai (mm):
2 mm
Rugosité de la surface de l'echantillon (µm):
RA max 15 µm
€5,520.00 HT
Price HT
Stock
Shipping time
Action
2
Available from stock
48 - 72h
Description

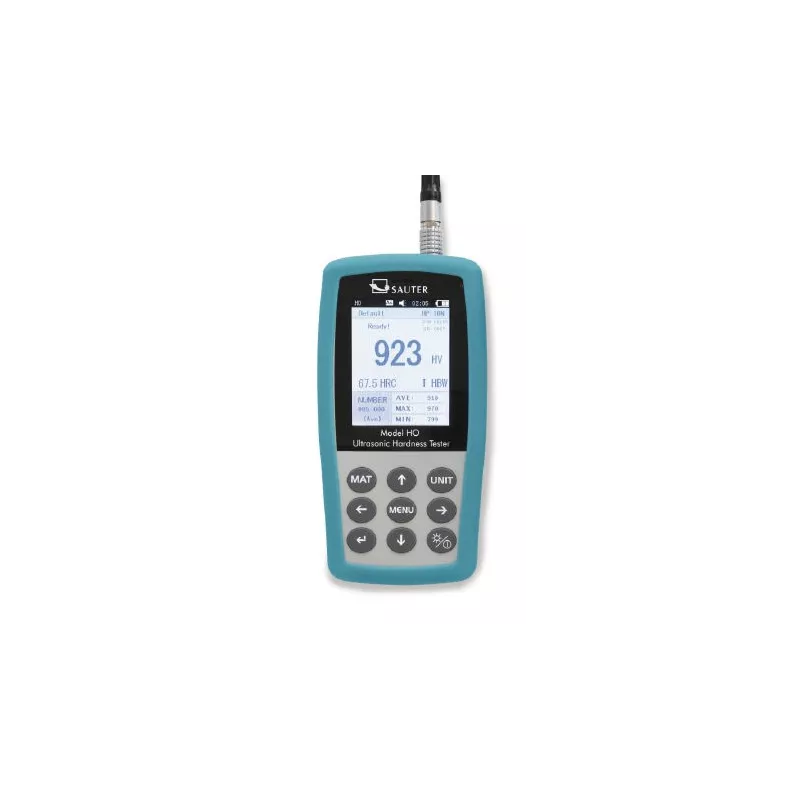

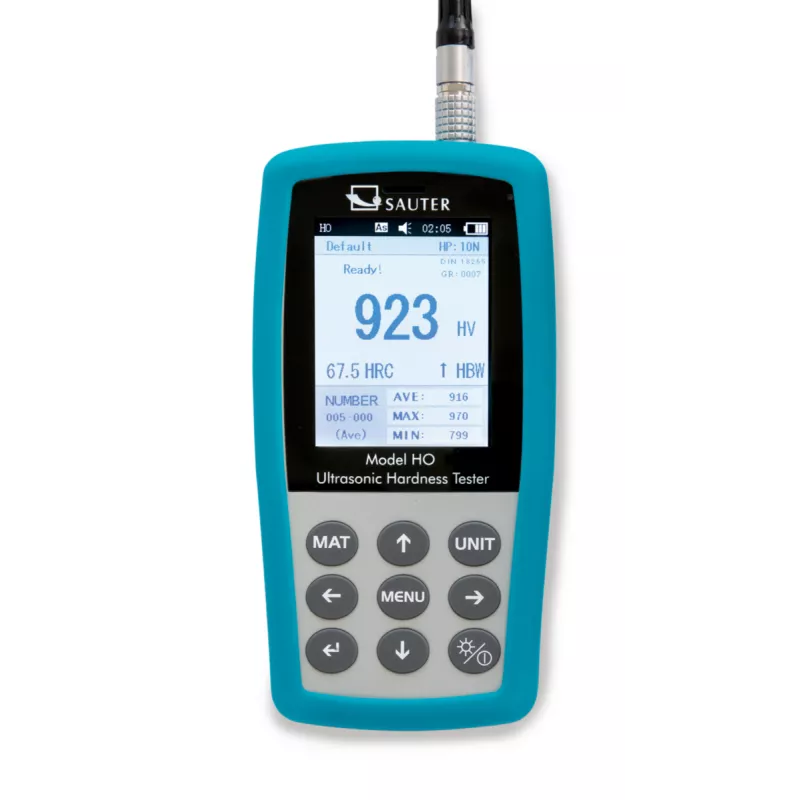

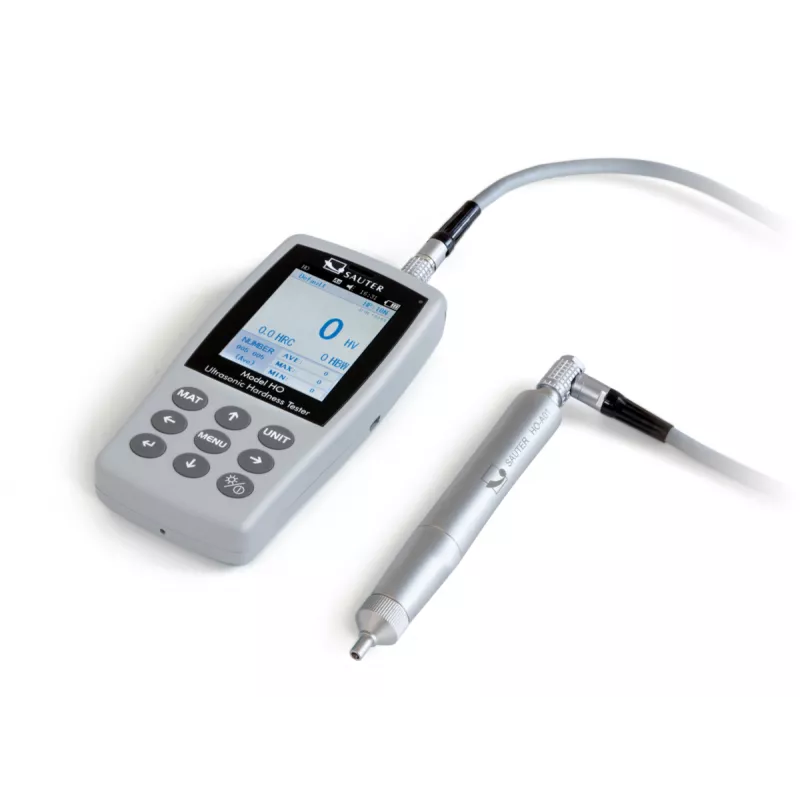

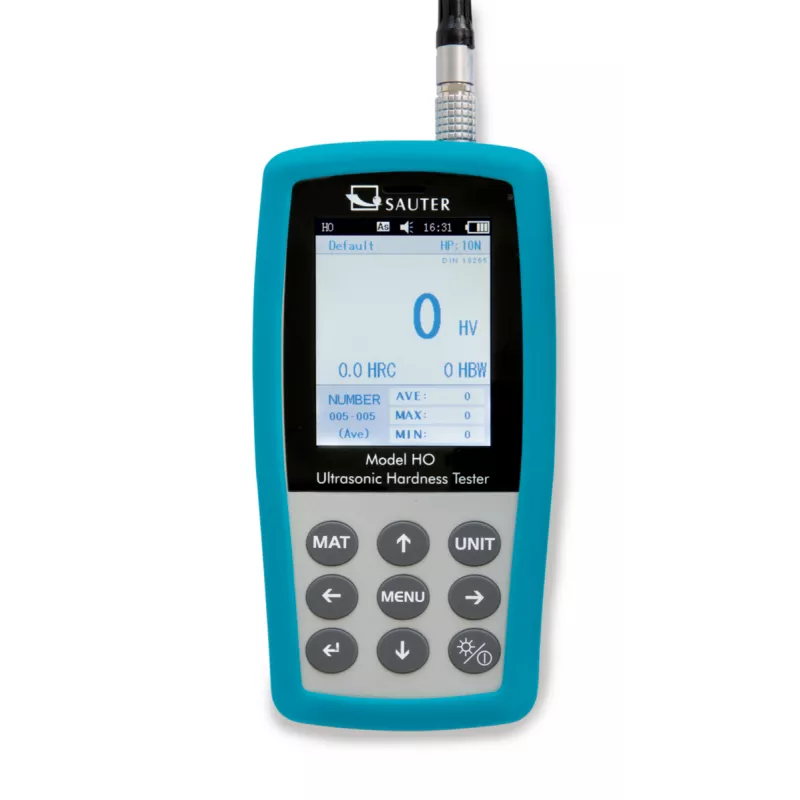

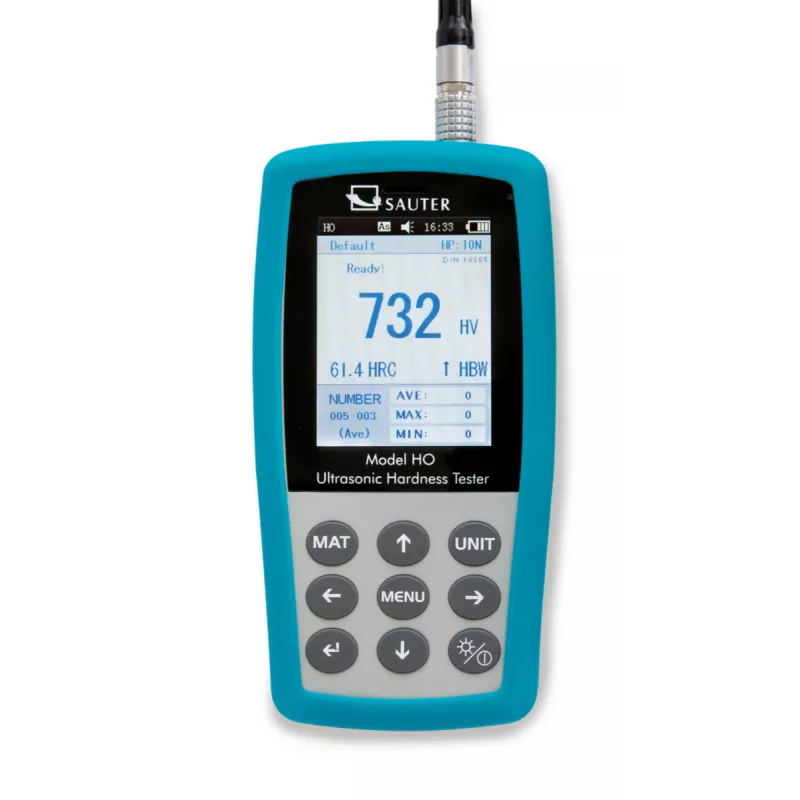

- Application: This ultrasound hardness testing device is ideally suited for mobile hardness testing, where the main emphasis is on obtaining rapid and precise results
- Principle: The SAUTER HO measures using a Vickers diamond tip, which is pressed into the test piece with a defined force. After that the tip is moved into high-frequency ultrasound vibrations. The hardness is derived from the attenuation
- Examples: The HO ultrasound hardness testing system is primarily used for measuring small forgings, castings, welding points, punched parts, casting tools, ball bearings and the flanks of gear wheels as well as for measuring the influence of warmth or heat
- Advantages compared with Rockwell and Brinell: Less test force and therefore only microscopic, small penetrations means that the testing is less destructive
- Advantages compared with Vickers: Demanding optical measuring is not required. You can therefore carry out measurements directly on-site, for example, on a permanently installed workpiece
- Advantages compared with Leeb: The high requirements for the weight of the test object are no longer required, in most cases
- Standards: The device fulfils these technical standards: DIN 50159-1-2008; ASTMA1038-2005; JB/T9377-2013
-
Mini statistics function: Display of the measuring result, the number of measurements, the maximum and minimum value as well as the average value and the standard deviation - Measurement data memory saves up to 1000 measurement groups each with 20 individual values
- Calibration: The device can be adjusted to standard hardness comparison plates as well as to individual reference standards
-

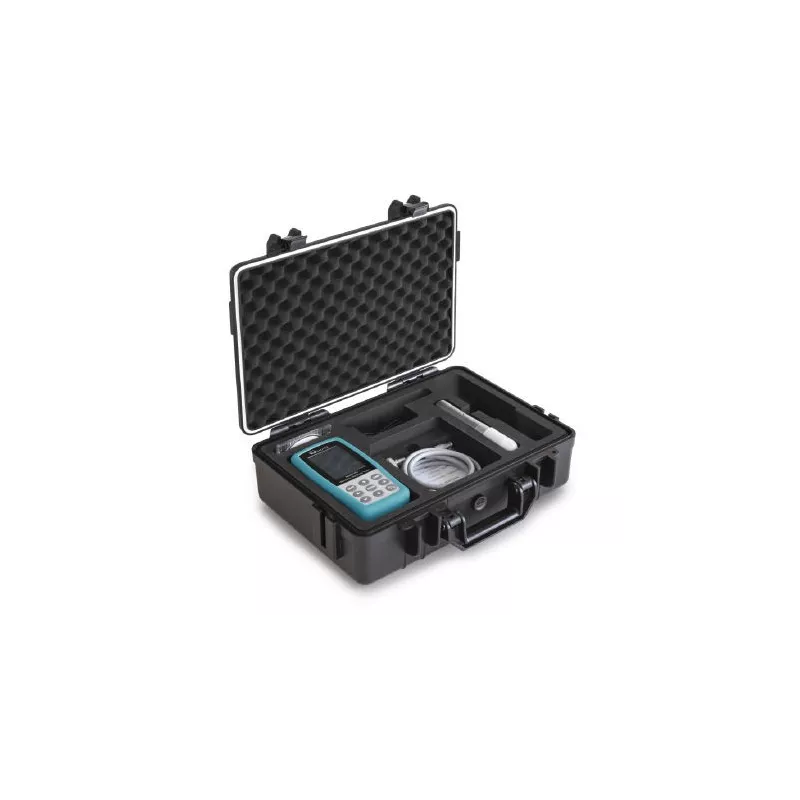

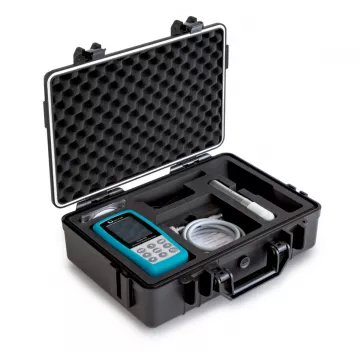

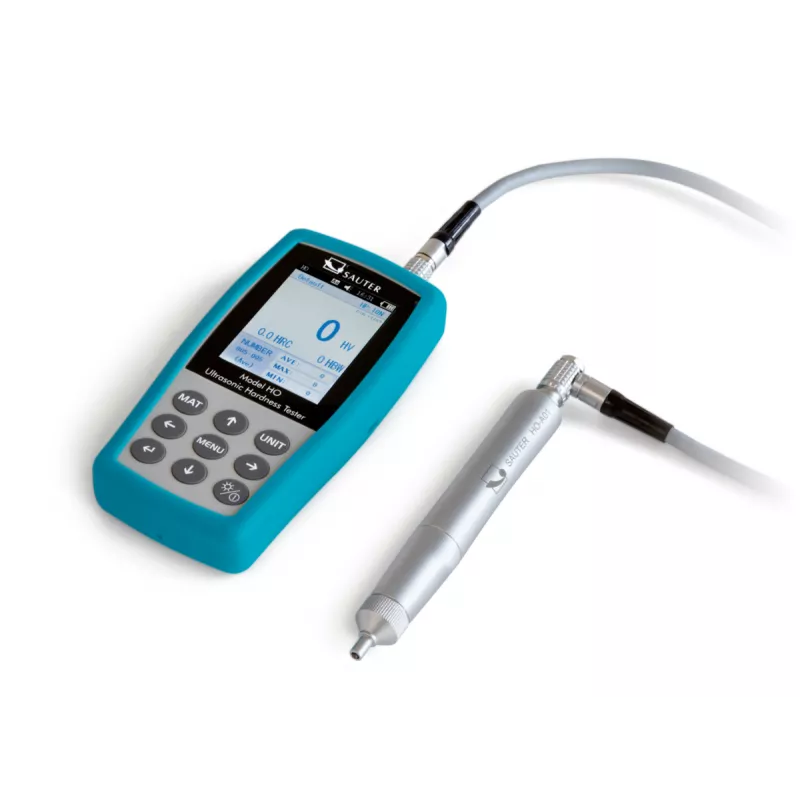

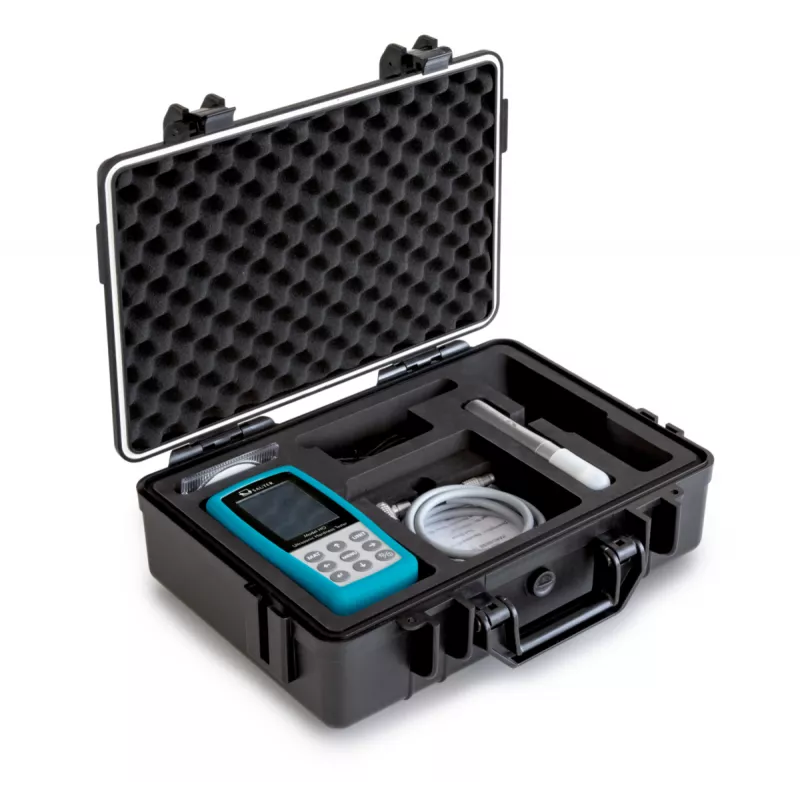

Scope of supplies: Display unit, UCI sensor unit, transport case, software to transfer the saved data to the PC, accessories
You might also like
UCI-Sonde for HV 2 for ultrasound hardness...
€4,500.00
External impact sensor Type D - AHMO D
€355.00
Test bench for repeatable movements during...
€1,610.00

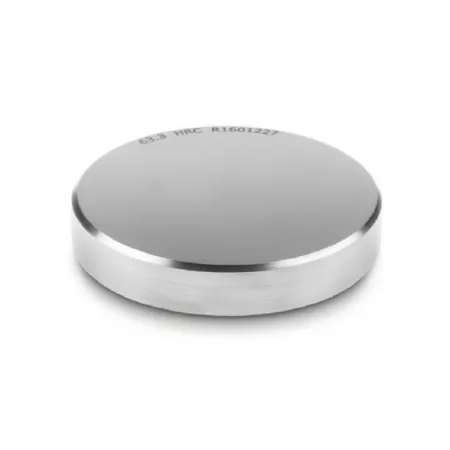

Calibration and adjustment plate (hardness...
€440.00
Calibration and adjustment plate (hardness...
€440.00
Calibration and adjustment plate (hardness...
€440.00
Calibration and adjustment plate (hardness...
€440.00

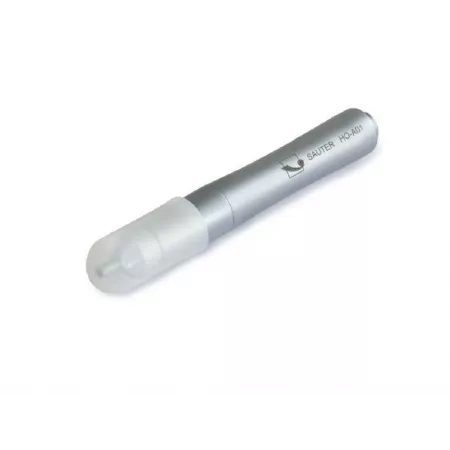

UCI-Sonde for HV 10 - HO-A14
€4,500.00
Motorisierte UCI-Sonde for HV 0,3 - HO-A15
€2,900.00
Motorisierte UCI-Sonde for HV 0,5 - HO-A16
€2,900.00
Motorisierte UCI-Sonde for HV 0,8 - HO-A17
€2,900.00

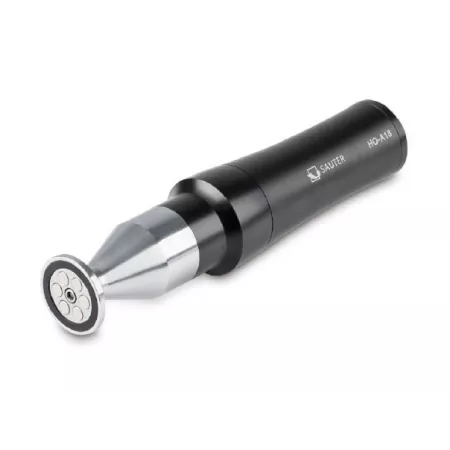

Motorisierte UCI-Sonde for HV 1 - HO-A18
€3,900.00

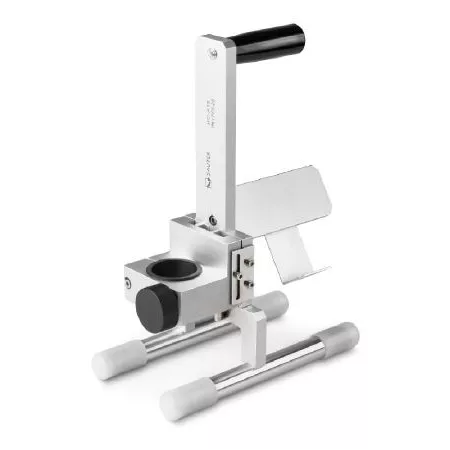

Test stand - HO-A19
€2,120.00
Connection cable - HO-A20
€300.00
Transport case - HO-A21
€500.00
10 other products in the same category:
Ultrasound hardness testing device HO-M
€5,900.00

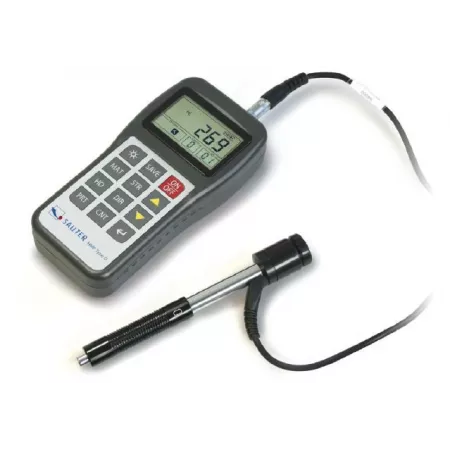

Mobile Leeb hardness tester HMP
€1,290.00
Test block Type D/DC, hardness range 790 ±...
€410.00
External impact sensor Type DC - AHMO DC
€530.00
Test block Type D/DC, hardness range 630 ±...
€410.00
Connection cable for hardness testers -...
€95.00
Impact body Type D - AHMO D01
€240.00

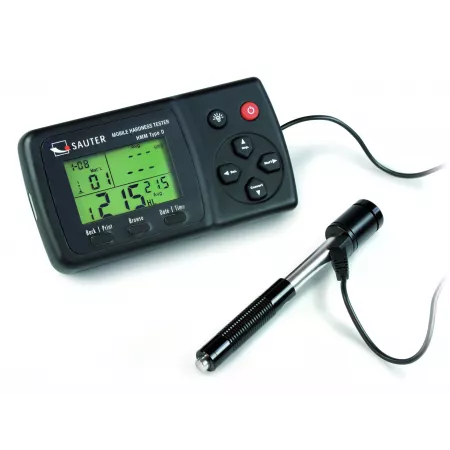

Mobile Leeb hardness tester HMM
€2,360.00

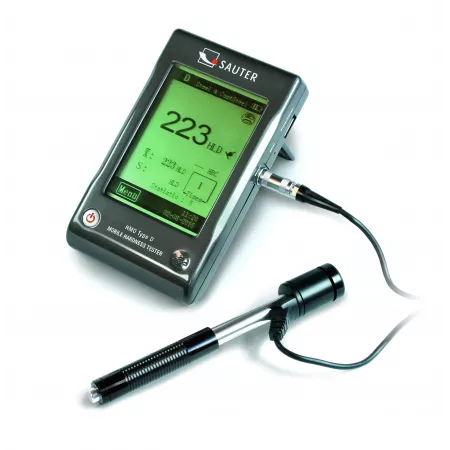

Mobile Leeb hardness tester HMO
