Impact body Type D - AHMO D01
€240.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
Characteristics
Precision (of [Max]):
1 %
Readout [d] HL:
1
Sensor:
Type D
Measuring range [Max]:
960
Measuring range [Min]:
170
Weighing units:
HB HL HRB HRC HV MPa
Option ISO calibration certificate:
€1,161.00 HT €1,290.00
Price HT
Stock
Shipping time
Action
0
Unfortunately not available at this time!
Description
- Automatic recognition of the impact (rebound) sensor connected to the HMP.
- Measures all metal samples (> 5 kg, thickness > 8 mm)
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMP. offers the highest level of mobility and flexibility
-
External impact sensor standard (Type D) - All measurement directions possible (360°) thanks to an automatic compensation function
- Software and PC connection cable standard
- Standard block for calibration with defnied HLD value standard
- Support rings for bended testing samples available on request[/], [list1]on request
-
Delivered in a hard carrying case - Internal memory for up to 100 data groups, with up to 32 values per group forming the average value of the group
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Precision: ± 1 % at 800 HLD
- Measuring range tensile strength: 374 - 2652 MPa (steel)
- Minimum sample radius (concave/convex): 50 mm (with support ring: 10 mm)
- Min. sample weight on a solid and stable support:
- Sensor C: 1,5 kg
- Sensor D, DC, D+15, DL: 5 kg
- Sensor G: 15 kg
- Minimum sample thickness:
- Sensor C: 1 mm
- Sensor D, DC, D+15, DL: 8 mm
- Sensor G: 10 mm
You might also like
10 other products in the same category:
Test block Type D/DC, hardness range 790 ±...
€410.00
External impact sensor Type D - AHMO D
€355.00

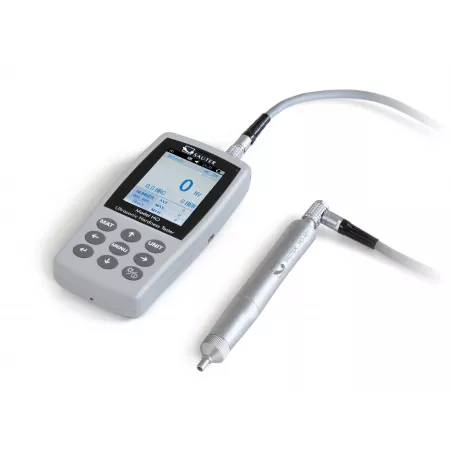

Ultrasound hardness testing device HO
€4,968.00 €5,520.00

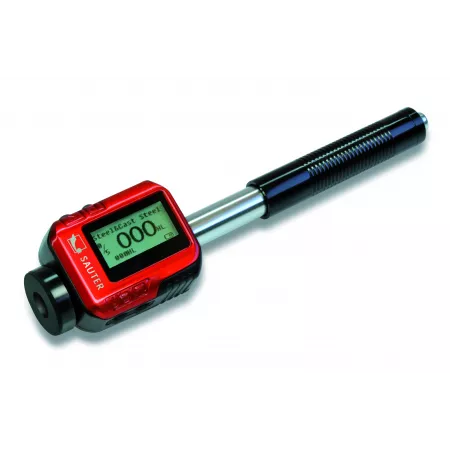

Mobile Leeb hardness tester HK-D
€2,556.00 €2,840.00
Connection cable for hardness testers -...
€95.00
Impact body Type D - AHMO D01
€240.00
Mobile Leeb hardness tester HMM
€2,124.00 €2,360.00
Mobile Leeb hardness tester HMO
€1,818.00 €2,020.00

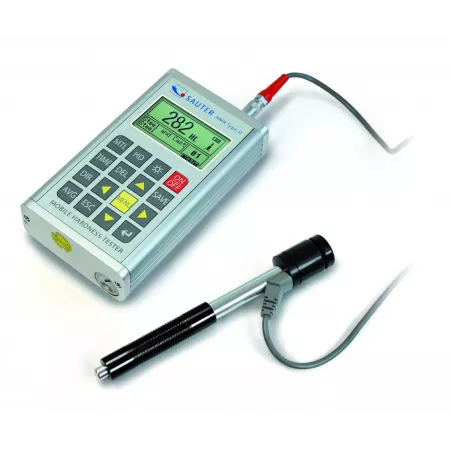

Leeb Mesureur de Dureté
