Impact body Type D - AHMO D01
€230.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
HMO. See specifications
Characteristics
Measuring range [Max] HL:
170 – 960 HL
Readout [d] HL:
1
Sensor:
Type D
Weighing units:
HB HL HV HRB MPa HRC
Option Factory calibration certificate:
€2,020.00 HT
Price HT
Stock
Shipping time
Action
10
Available from stock
48 - 72h
Description
- Innovative touchscreen
- Automatic recognition of the impact (rebound) sensor connected to the HMO.
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO. offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function
- USB interface for connection to the printer and charging the batteries
-
Standard block for calibration included -
Delivered in a hard carrying case - Internal memory up to 800 values
- Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
- Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
Technical data
- Precision: 1 % 800 HLD (± 6 HLD)
- Measuring range tensile strength: 375 - 2639 MPa (steel)
- Min. sample weight on a solid and stable support:
- Sensor D + DC: 3 kg
- Sensor G: 15 kg
- Minimum sample thickness:
- Sensor D + DC: 8 mm
- Sensor G: 10 mm
- Minimum sample radius (concave/convex): 50 mm (with support ring: 10 mm)
You might also like
10 other products in the same category:
Impact body Type D - AHMO D01
€230.00
Leeb Mesureur de Dureté
€1,791.00 €1,990.00
External impact sensor Type D - AHMO D
€340.00
Mobile Leeb hardness tester HMP
€1,161.00 €1,290.00
External impact sensor Type DC - AHMO DC
€490.00
Connection cable for hardness testers -...
€95.00

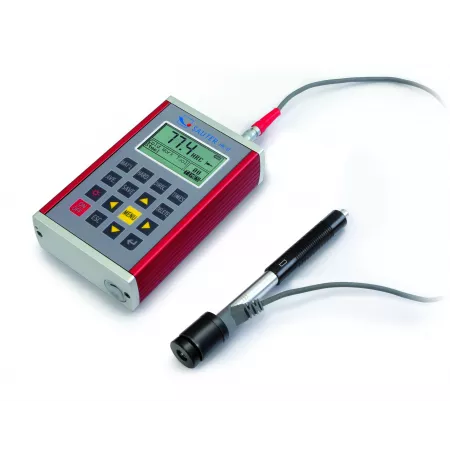

Mobile Leeb hardness tester HK-D
