Ultrasound hardness testing device HO-M | Balance Express

Ultrasound hardness testing device HO-M

€5,900.00 Tax excluded

Condition

New

Reference

HO 3M

SAUTER HO-M ► Premium UCI hardness testing device for Rockwell, Brinell and Vickers with motorised probe for automated measurement processes

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

HardnessTesting SAUTER Hardness Ultrasound HardnessTestingDevice Rockwell Brinell Vickers UltrasoundHardnessTesting SAUTERHO-M HO-M HO3M

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

HO 3M

Characteristics

Hardness scale:

HV 0.3

Option Factory calibration certificate:

Test force (N):

0,3 N

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

€5,900.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 5M

Characteristics

Hardness scale:

HV 0.5

Option Factory calibration certificate:

Test force (N):

0,5 N

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

€5,900.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 8M

Characteristics

Hardness scale:

HV 0.8

Option Factory calibration certificate:

Test force (N):

8 N

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

€5,900.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 10M

Characteristics

Hardness scale:

HV 1

Option Factory calibration certificate:

Test force (N):

1 N

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

€5,900.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

This range has identical product features to the SAUTER HO range, but is fitted with a motorised probe for automated measurement processes instead of the manual probe

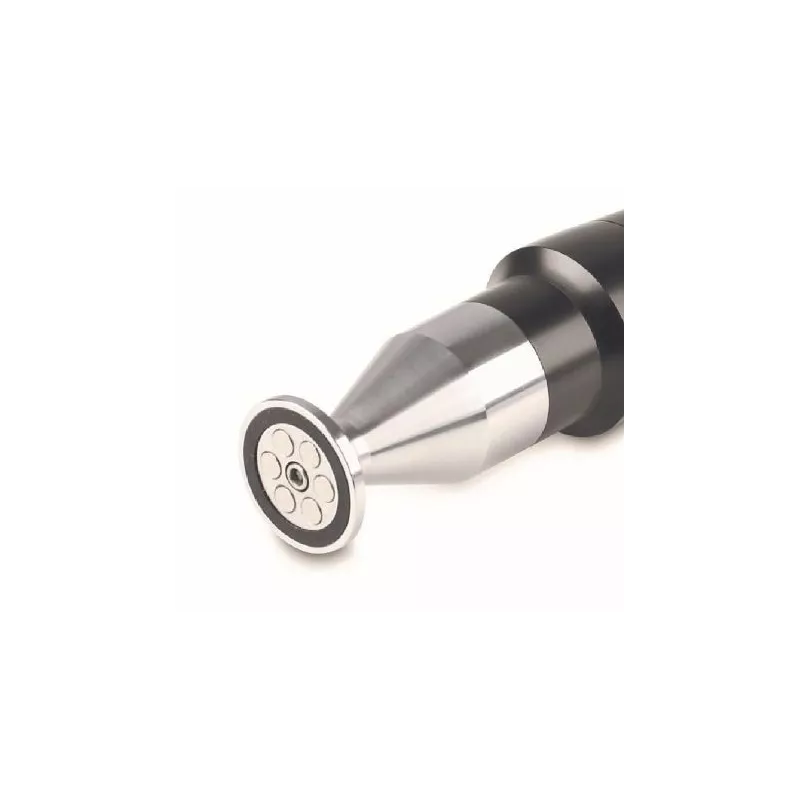

The motorised probe has a magnetic attachment ring which fixes it onto a magnetic test item securely. For non-magnetic test items, the motorised probe can be easily fixed by hand using the ergonomically-shaped attachment ring
A motor inside the probe independently takes on the process of pressing the indenter into the test item, which helps to minimise incorrect use by the operator
One-button function: the measurement process can be started with a single press of a button. Because it is particularly easy to operate, the user can carry out the most demanding hardness tests without a lengthy teach-in phase
Virtually non-destructive testing: the resulting penetrations can only be seen under a microscope
Higher accuracy and repeatability than with manual probes
Besonders geeignet für kleine, dünne Teile, dank des automatisierten Prüfablaufs
Designed for parts with hardened surfaces because of the low penetration depth of the indenter

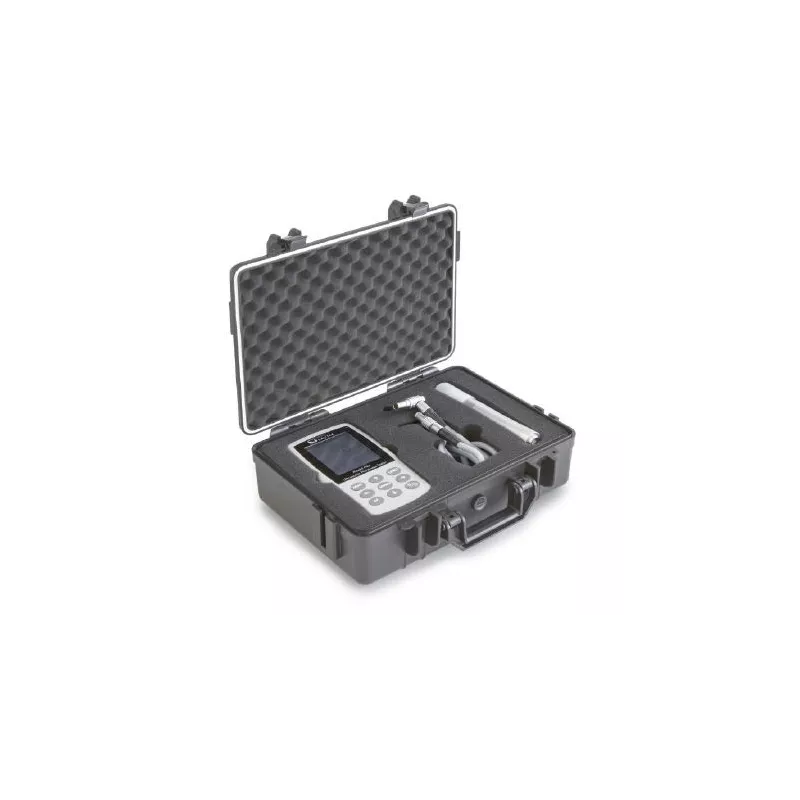

Scope of supplies: 1 display device, 1 motorised probe, 1 transport case with standard accessories

Downloads

Brochure SAUTER HO-M (FR)

Download (278.34KB)

Mode d'emploi SAUTER HO-M (FR)

Download (610.46KB)

Brochure SAUTER HO-M (EN)

Download (285.45KB)

Usage manual SAUTER HO-M (EN)

Download (600.65KB)

Dépliant SAUTER HO-M (IT)

Download (248.66KB)

Istruzioni SAUTER HO-M (IT)

Download (604.93KB)

Einzelprospekt SAUTER HO-M (GE)

Download (287.34KB)

Betriebsanleitung HO-M (GE)

Download (610.7KB)

Folleto SAUTER HO-M (ES)

Download (254.29KB)

Instrucciones SAUTER HO-M (ES)

Download (609.17KB)

Specific references

EAN13: 4045761208636

Motorisierte UCI-Sonde for HV 0,3 - HO-A15

€2,900.00

Motorisierte UCI-Sonde for HV 0,5 - HO-A16

€2,900.00

Motorisierte UCI-Sonde for HV 0,8 - HO-A17

€2,900.00

Motorisierte UCI-Sonde for HV 1 - HO-A18

€3,900.00

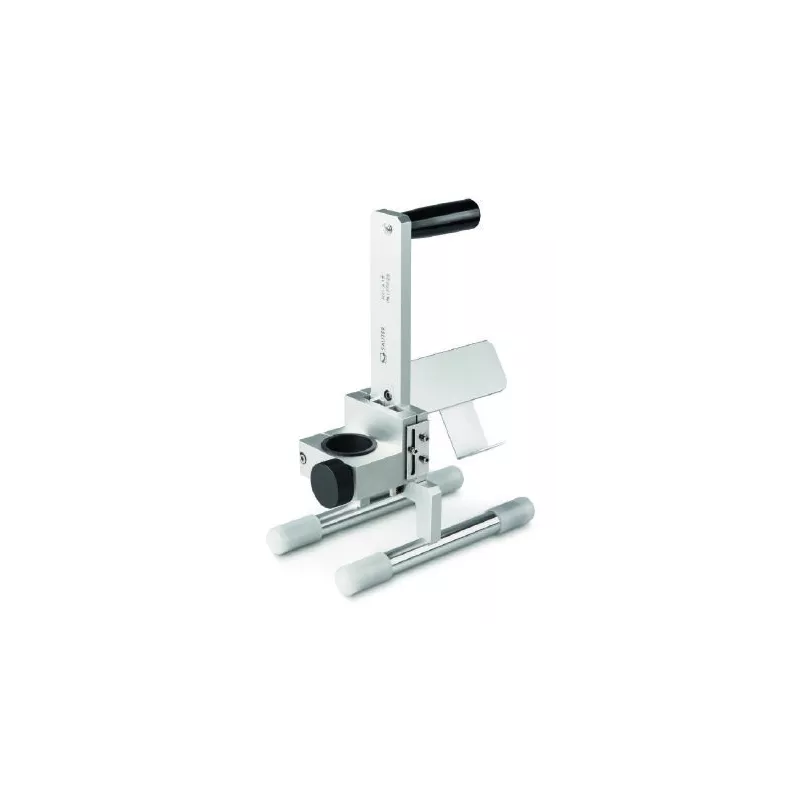

Test stand - HO-A19

€2,120.00

Transport case - HO-A21

€500.00

Display device for Ultrasound hardness...

€1,150.00
