Impact body Type D - AHMO D01
€240.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
HK-D See specifications
Characteristics
Measuring range [Max] HL:
170 – 960 HL
Readout [d] HL:
1 HL
Sensor:
Type D
Weighing units:
HB HL HRB HRC HV
Option Factory calibration certificate:
Bloc de référence Typ D/DC env. 800 HL:
non inclus
€2,840.00 HT
Price HT
Stock
Shipping time
Action
6
Available from stock
48 - 72h
Model
Characteristics
HK-DB
Characteristics
Measuring range [Max] HL:
170 – 960 HL
Readout [d] HL:
1 HL
Sensor:
Type D
Weighing units:
HB HL HRB HRC HV
Option Factory calibration certificate:
Bloc de référence Typ D/DC env. 800 HL:
inclus
€2,940.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Description
- Measures all metal samples (> 3 kg, thickness > 8 mm)
- External impact sensor standard (Type D)
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D. offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function
- Standard block for calibration not included
- USB interface, included
-

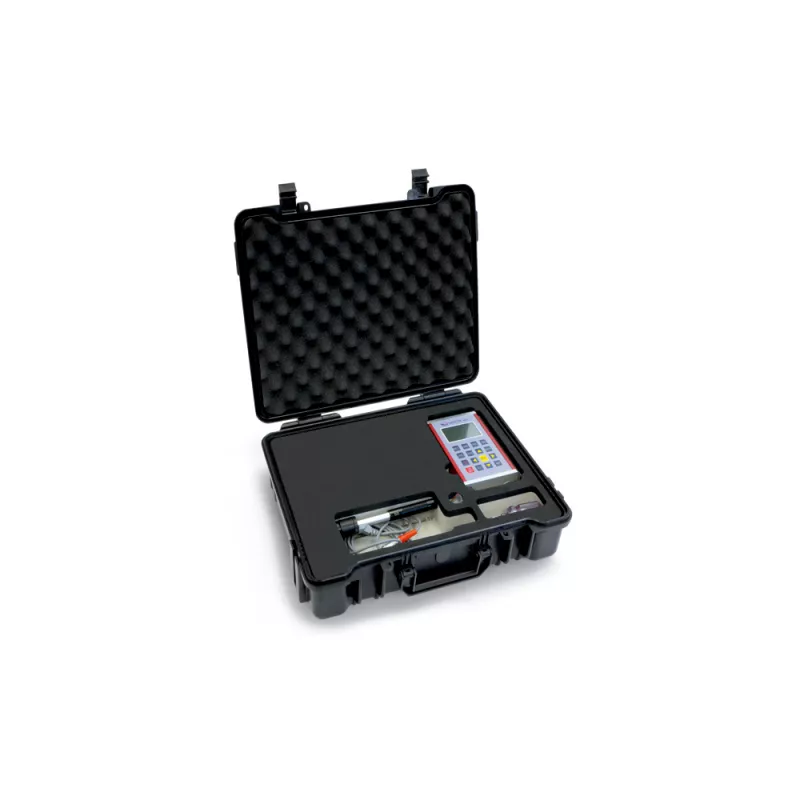

Delivered in a hard carrying case - Internal memory for up to 600 data groups, with up to 32 values per group forming the average value of the group
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
- Matrix display: Backlit multi-function display for all relevant functions at a glance
- Robust metal housing
