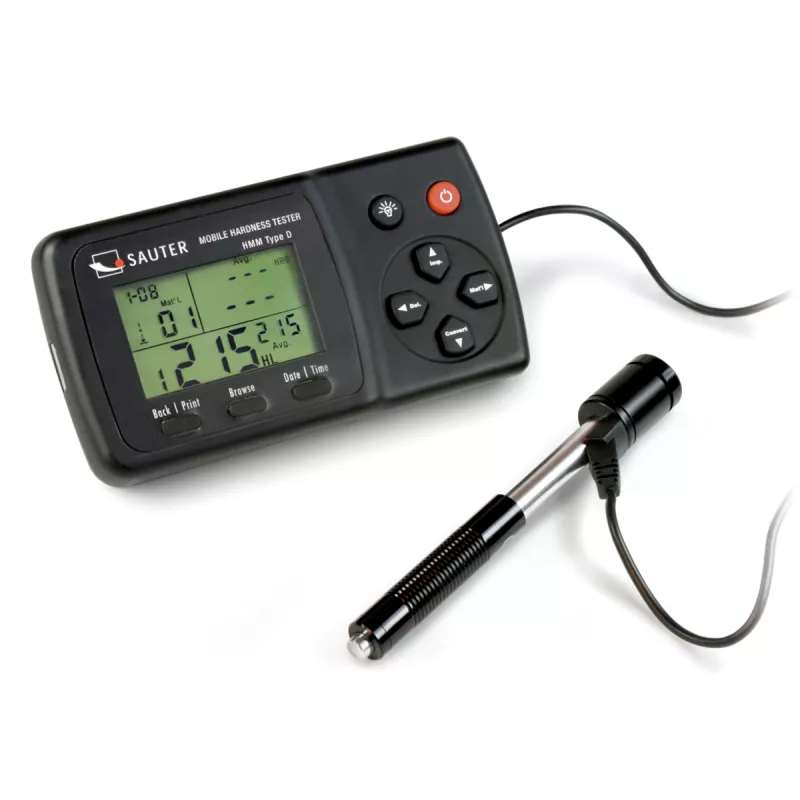

Mobile Leeb hardness tester HMM
€1,060.00
Save 10%
€954.00
Tax excluded
€954.00 - €1,062.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
Characteristics
Sensor:
Type D
Measuring range [Max] HL:
170 – 960 HL
Readout [d] HL:
1 HL
Weighing units:
HB HL HV HRB MPa HRC
Imprimante:
Option Factory calibration certificate:
€1,062.00 HT
€1,180.00
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
HMM-NP
Characteristics
Sensor:
Type D
Measuring range [Max] HL:
170 – 960 HL
Readout [d] HL:
1 HL
Weighing units:
HB HL HV HRB MPa HRC
Imprimante:
Option Factory calibration certificate:
€954.00 HT
€1,060.00
Price HT
Stock
Shipping time
Action
10
Available from stock
48 - 72h
Description
-

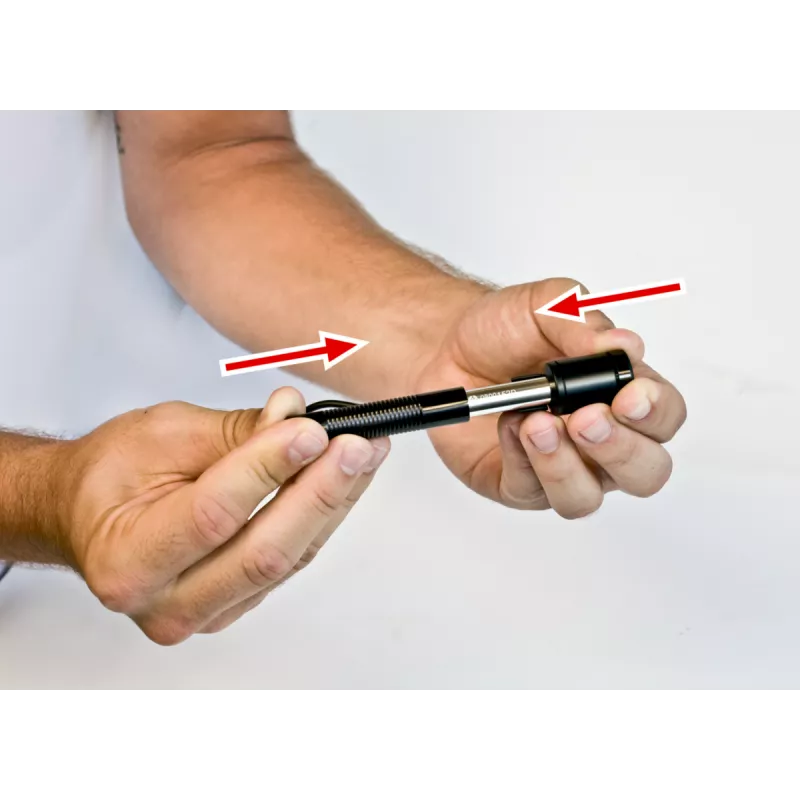

Impact (rebound) sensor: The bounce module is accelerated by a spring against the item being tested. Depending on how hard the object is, the kinetic energy of the module will be absorbed. The speed reduction will be measured and converted to Leeb hardness values. - External impact sensor (Type D) included
- Automatic recognition of the impact (rebound) sensor connected to the HMM.
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMM. offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function
-
Wireless IR printer included for on-site printing of measurement protocols (battery operated) -
Standard block for calibration included -
Delivered in a hard carrying case - Internal memory for up to 9 data groups, with up to 9 values per group forming the average value of the group
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
