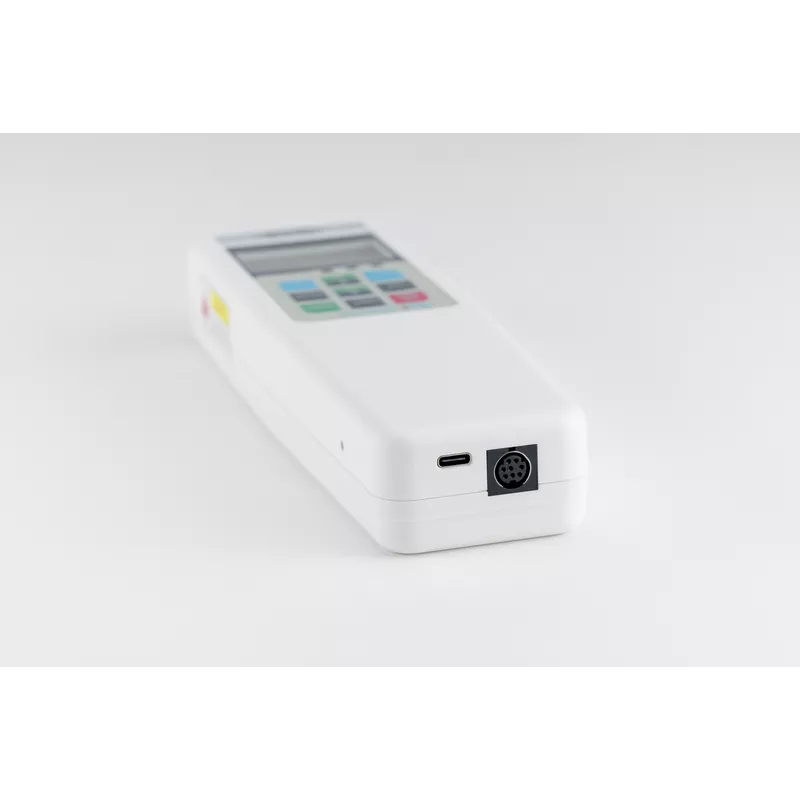

Digital force gauge SAUTER FH-EXT
Description

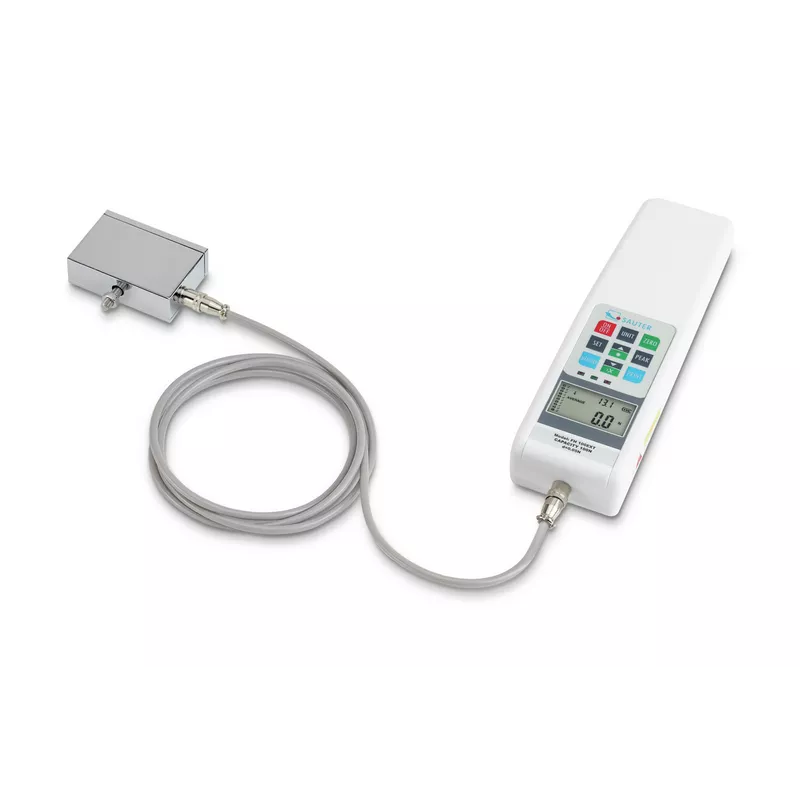

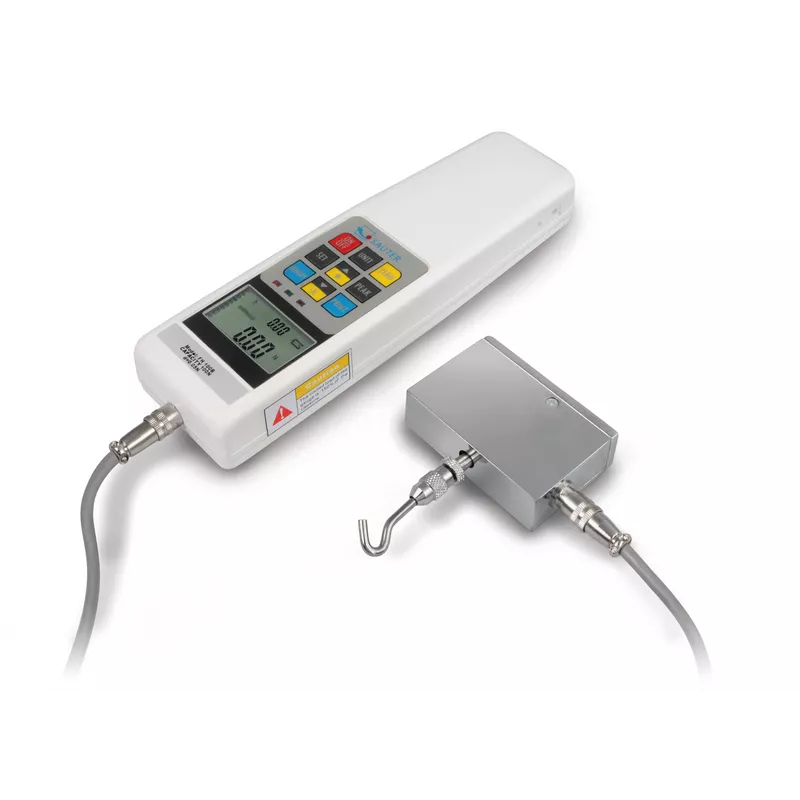

- Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
- Ideal for force measurement of very slight forces or loads in machines and plants
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Push & Pull function to capture tensile and compressive forces
- Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
- Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
- Rechargeable battery pack internal, battery charger included
- Depending on the display unit, only one measuring cell can be connected
- Suitable for all SAUTER test stands (When ordering a test stand please state)
Technical data
- External sensor: Dimensions LxWxH 76×65×22 mm, net weight approx. 0,3 kg (without sensor)
- Cable length for display unit approx. 2 m
- Tolerance 1 % of [Max]
- Selectable measuring units: N, kg, lb
- Overload protection: 150 % of [Max]
Brochure SAUTER FH-EXT (EN)
Download (128.23KB) Mode d'emploi SAUTER FH-EXT (FR)
Download (684.22KB) Usage manual SAUTER FH-EXT (EN)
Download (676.19KB) Istruzioni SAUTER FH-EXT (IT)
Download (679.21KB) Betriebsan. SAUTER FH-EXT (GE)
Download (681.71KB) Instrucciones SAUTER FH-EXT (ES)
Download (683.2KB) Specific references
- EAN13
- 4045761140608
