Crank test stand SAUTER TVL | Balance Express

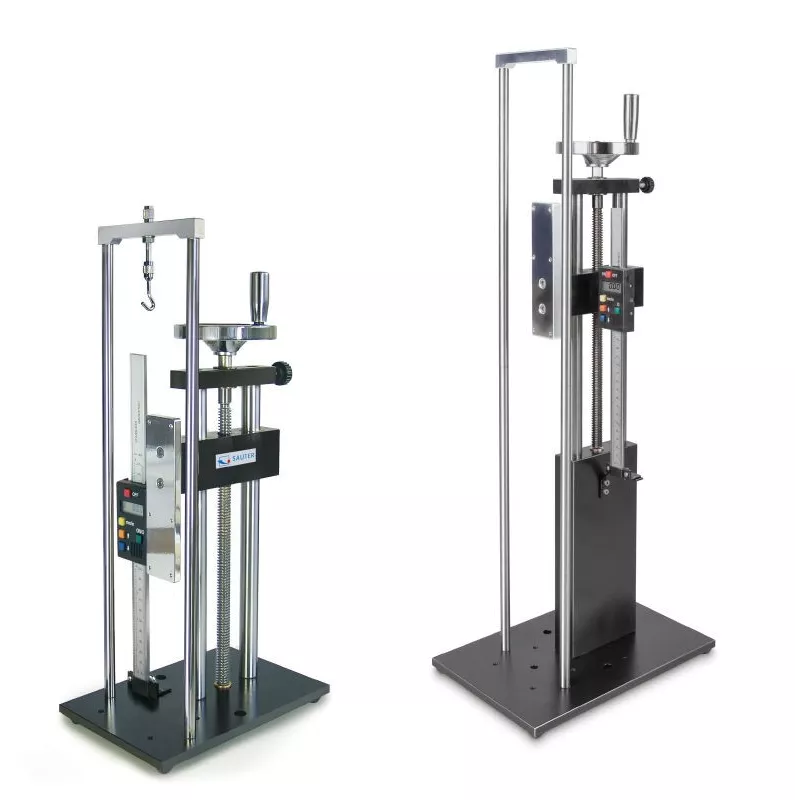

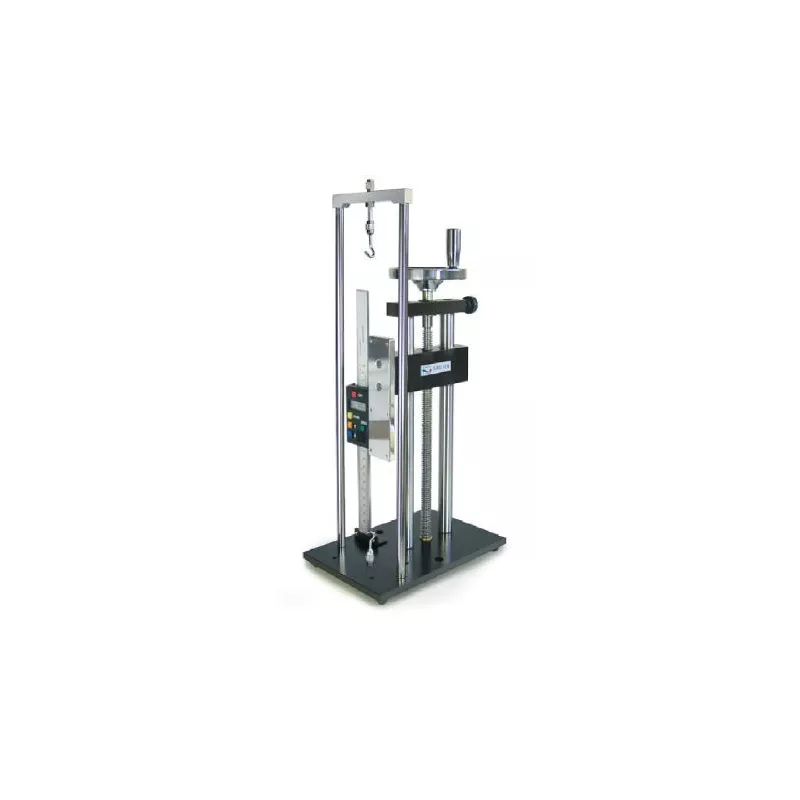

Crank test stand SAUTER TVL

€450.00 Tax excluded

€450.00 - €760.00

Condition

New

Reference

TVL

SAUTER TVL ► Manual test bench for highly accurate tensile and compressive force measurement, with length measurement

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TVL See specifications

Characteristics

Maximum travelling distance:

230 mm

Measuring range [Max] N:

1000 N (1 kN)

Measuring range [Max] mm:

200 mm

Readout [d] mm:

0.01 mm

€450.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

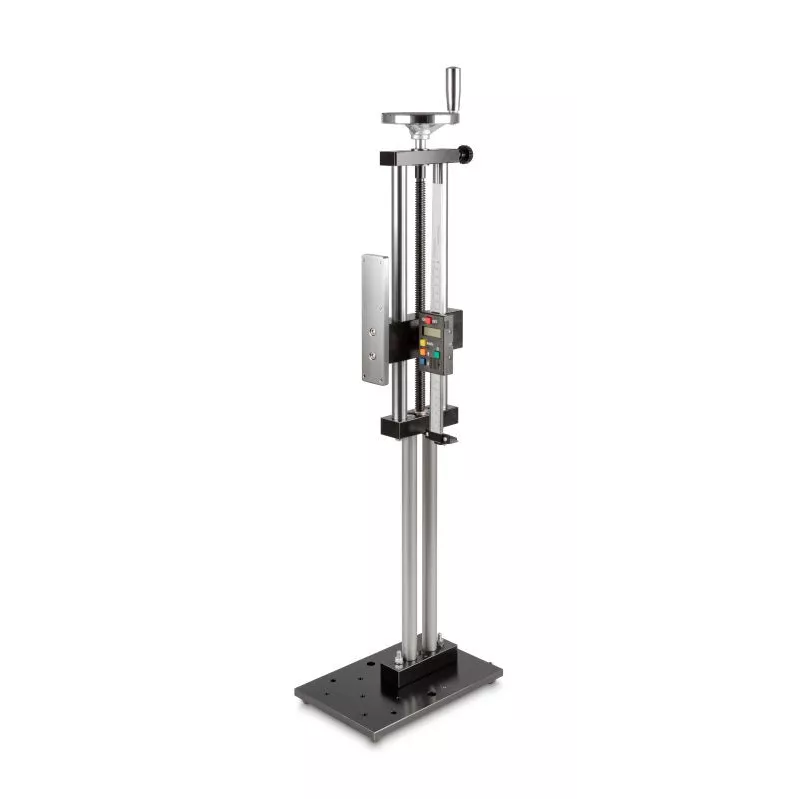

TVL-XLS

Characteristics

Maximum travelling distance:

230 mm

Measuring range [Max] N:

500 N

Measuring range [Max] mm:

200 mm

Readout [d] mm:

0.01 mm

€760.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

For vertical and horizontal use
Precise measurement results
High level of security with repeated measurements
Large base plate with various holes for fixture mountings
Can be used for force gauges up to 500 N (not included)
Hook with M6 thread as standard
Digital length meter
- - Measuring range: 200 mm
- - Readout: 0,01 mm
- - Zero setting possible
- - Pre-length can be set manually

Max travel from base plate: 297 mm
Travel distance per knob rotation (one stroke): 3,1 mm

Downloads

Brochure SAUTER TVL (FR)

Download (178.25KB)

Mode d'emploi SAUTER TVL (FR)

Download (231.15KB)

Brochure SAUTER TVL (EN)

Download (174.8KB)

Usage manual SAUTER TVL (EN)

Download (230.72KB)

Dépliant SAUTER TVL (IT)

Download (172.24KB)

Istruzioni d’uso SAUTER TVL (IT)

Download (181.78KB)

Einzelprospekt SAUTER TVL (GE)

Download (183.85KB)

Betriebsanleitung SAUTER TVL(GE)

Download (232.62KB)

Folleto SAUTER TVL (ES)

Download (177.04KB)

Instrucciones SAUTER TVL (ES)

Download (233.04KB)

Specific references

EAN13: 4045761140271

High speed data transfer software AFH FAST

€115.00

Force-displacement analysis software AFH-FD

€710.00

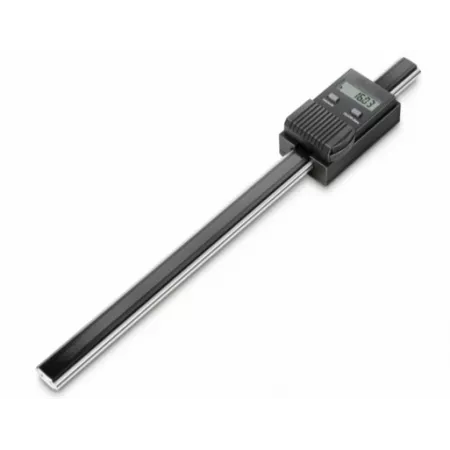

Digital length measuring device LB 200-2.

€2,280.00

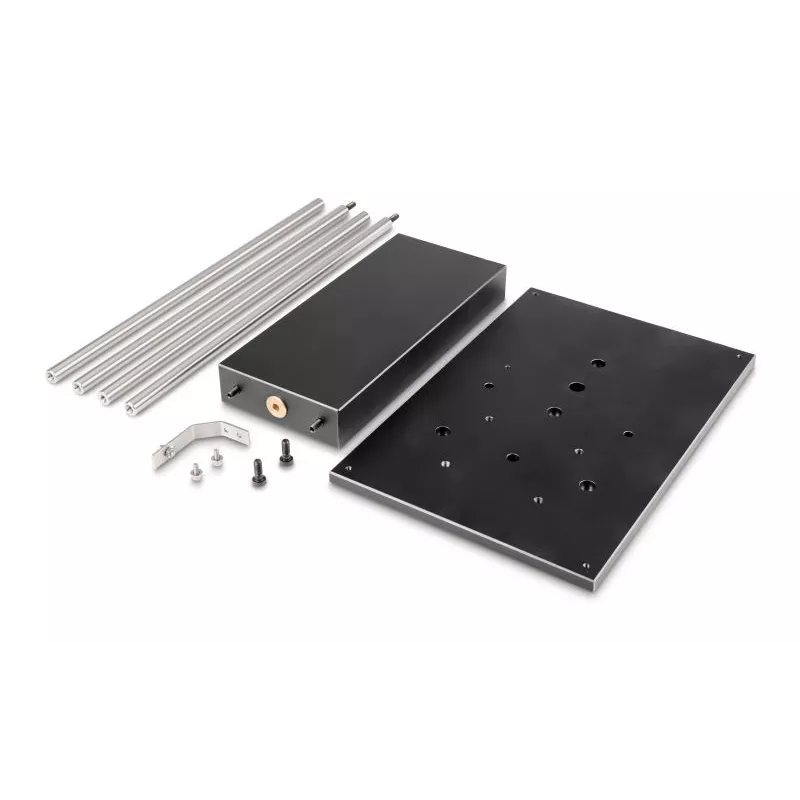

Extension kit for SAUTER TVL
