Digital force gauge SAUTER FH-M | Balance Express

Digital force gauge SAUTER FH-M

€1,000.00 Save 10%

€900.00 Tax excluded

€900.00 - €1,773.00

Condition

New

Reference

FH 1K

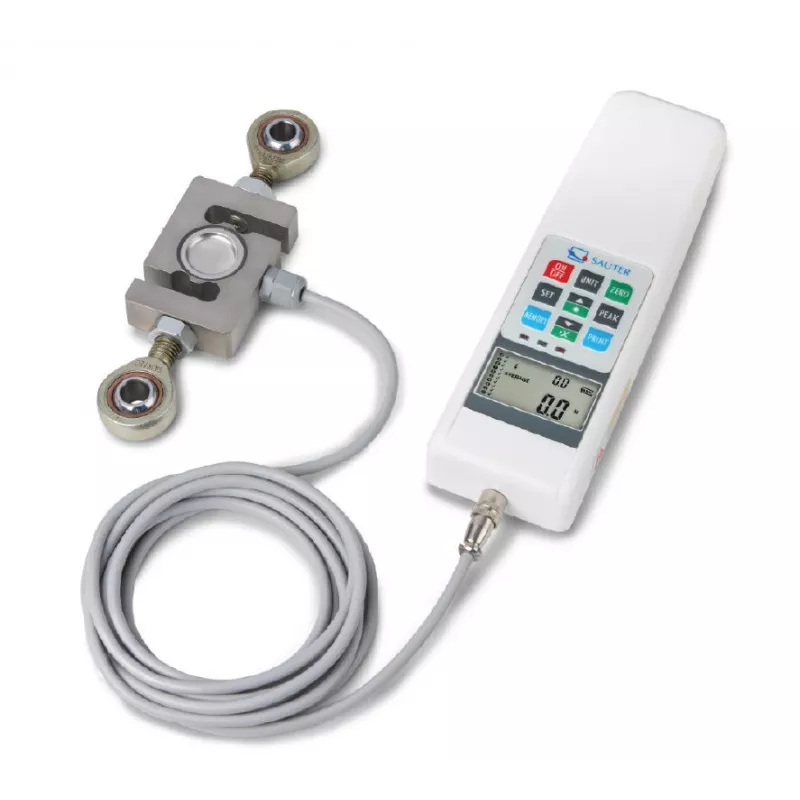

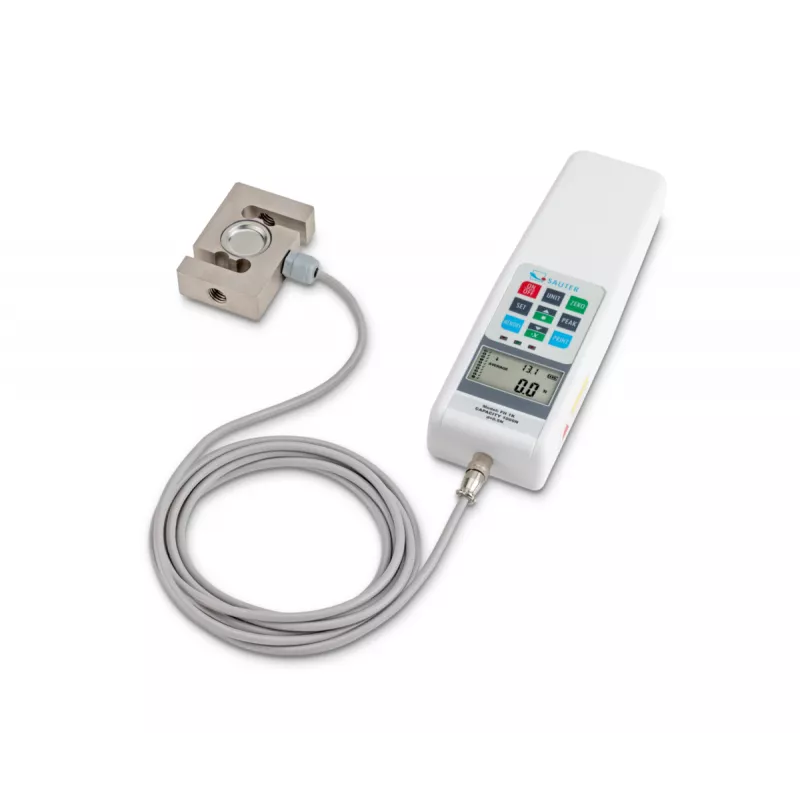

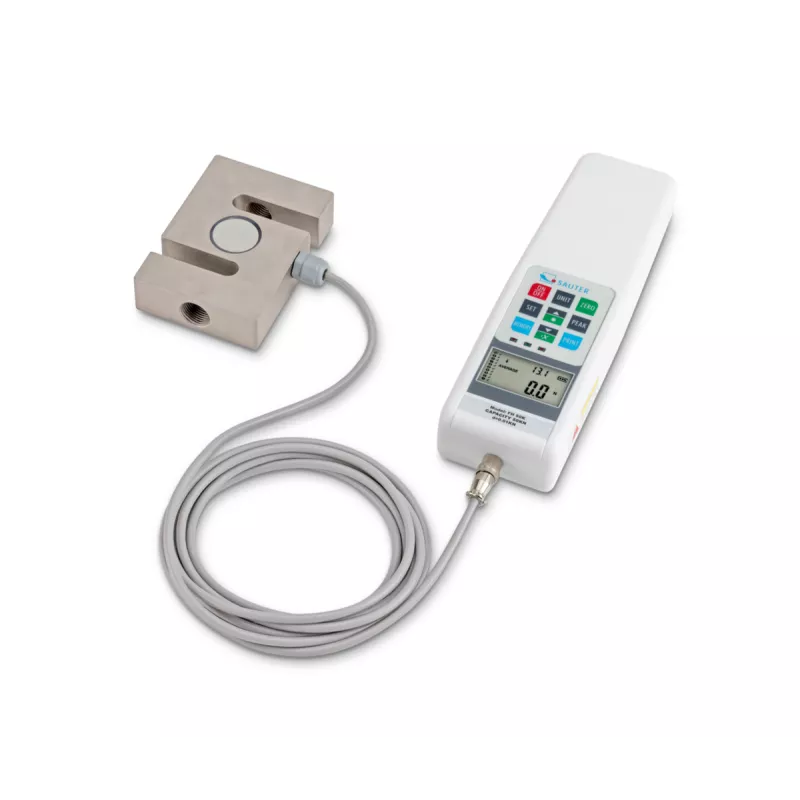

SAUTER FH-M ► Universal digital force-measuring devices for tensile and compressive force measurement with external measuring cell

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

ForceGauge DigitalForceGauge FH ForceMeasuring Force FH-M 1000N 2000N 5000N 10000N 20000N 50000N

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

FH 1K See specifications

Characteristics

Measuring range [Max] N:

1000 N (1 kN)

Readout [d] N:

0.5 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€900.00 HT €1,000.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 2K See specifications

Characteristics

Measuring range [Max] N:

2000 N (2 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€900.00 HT €1,000.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 5K See specifications

Characteristics

Measuring range [Max] N:

5000 N (5 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,143.00 HT €1,270.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 10K See specifications

Characteristics

Measuring range [Max] N:

10000 N (10 kN)

Readout [d] N:

5 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,350.00 HT €1,500.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 20K See specifications

Characteristics

Measuring range [Max] N:

20000 N (20 kN)

Readout [d] N:

10 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,350.00 HT €1,500.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 50K See specifications

Characteristics

Measuring range [Max] N:

50000 N (50 kN)

Readout [d] N:

10 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,575.00 HT €1,750.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 100K See specifications

Characteristics

Measuring range [Max] N:

100000 N (100 kN)

Readout [d] N:

50 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,773.00 HT €1,970.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Turnable display with backlight
cable length: approx. 3 m
Data interface RS-232 standard
Delivered in a hard carrying case
Selectable measuring units: N, lb, kg, kN, t
Real time or Peak Hold Mode to observe transcients or capture peaks
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
Auto-Power-Off
Internal memory for up to 10 measurements
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n

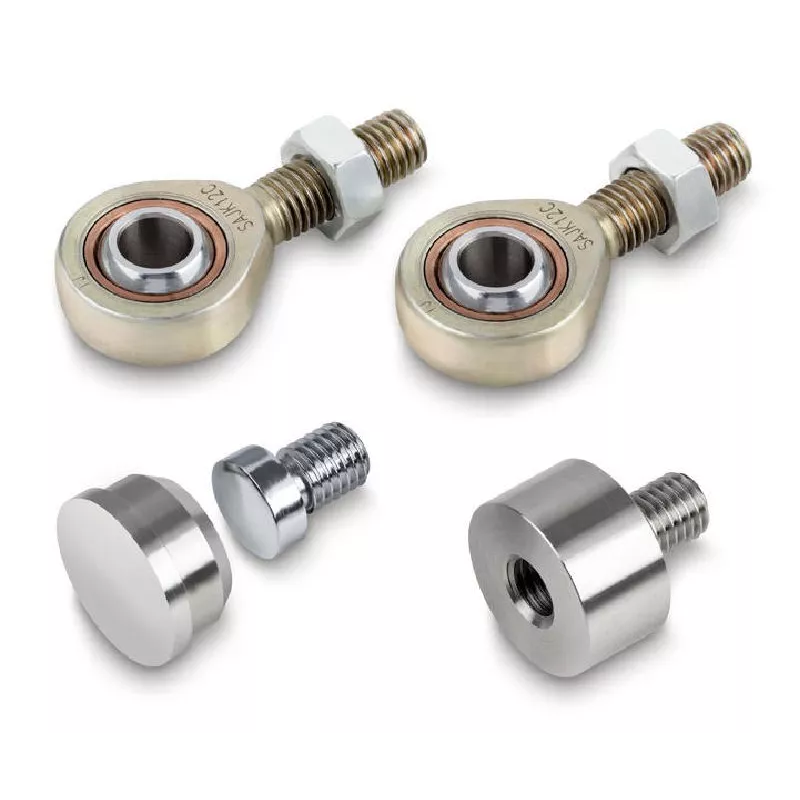

Tension loops and pressure plates are included with delivery

Downloads

Brochure SAUTER FH-M (FR)

Download (253.53KB)

Mode d'emploi SAUTER FH-M (FR)

Download (684.22KB)

Brochure SAUTER FH-M (EN)

Download (244.5KB)

Usage manual SAUTER FH-M (EN)

Download (676.19KB)

Einzelprospekt SAUTER FH-M (GE)

Download (253.17KB)

Betriebsan. SAUTER FH-M (GE)

Download (681.71KB)

Folleto SAUTER FH-M (ES)

Download (247.39KB)

Instrucciones SAUTER FH-M (ES)

Download (683.2KB)

Specific references

EAN13: 4045761140462

Pin vice for force gauges up to 500 N - AC 01

€138.00

Ball shaped head for pressure and fracture...

€65.00

Handle (length: 300 mm) and two round...

€640.00

Thin film grip attachment for tension...

€151.00

Grip clamp for put in and pull out tests...

€112.00

Parallel jaw grip for tension and fracture...

€95.00

Fine point clamp for tension and fracture...

€66.00

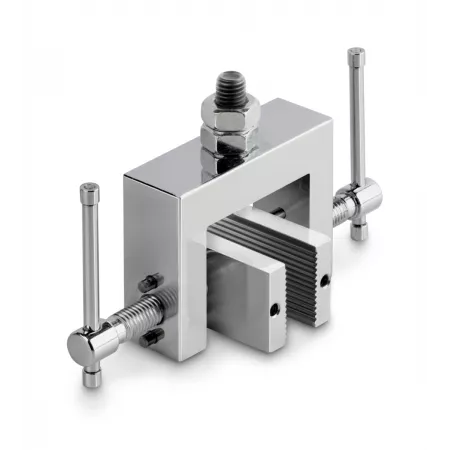

2 jaw grip for tension tests to 5 kN - AC 18

€156.00

Pressure disc, Ø 110 mm for compression...

€60.00

Software for Length measuring devices LD -...

€270.00
