Tensile force gauge SAUTER FC | Balance Express

Tensile force gauge SAUTER FC

€415.00 Save 10%

€373.50

Condition

New

Reference

FC 10

SAUTER FC ► Compact force-measuring device

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

ForceGauge MeasuringPushForce PushForce MeasuringPullForce PullForce DigitalForceGauge MeasuringPushForces MeasuringPullForces PushForces PullForces Force Gauge

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

FC 10

Characteristics

Measuring range [Max] N:

10 N

Readout [d] N:

0.01 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€373.50 HT €415.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FC 50

Characteristics

Measuring range [Max] N:

50 N

Readout [d] N:

0.01 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€373.50 HT €415.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FC 100

Characteristics

Measuring range [Max] N:

100 N

Readout [d] N:

0.1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€373.50 HT €415.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FC 500

Characteristics

Measuring range [Max] N:

500 N

Readout [d] N:

0.1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€373.50 HT €415.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FC 1K

Characteristics

Measuring range [Max] N:

1000 N (1 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€373.50 HT €415.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Turnable display with backlight
Real time or Peak Hold Mode to observe transcients or capture peaks
Metal housing for durable usage in harsh environmental conditions
Capacity display: A bar lights up to show how much of the measuring range is still available
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal
Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
Internal memory for up to 1000 measurements
USB data interfaces as standard
Data interface RS-232 (only for connection to the printer)
Selectable: AUTO-OFF function or permanent operation
Delivered in a hard carrying case
Selectable measuring units: N, kg, oz, lb
Standard attachments: as shown below, extension rod: 90 mm
Can be mounted on all SAUTER test stands (with adapter plate)

Downloads

Brochure SAUTER FC (FR)

Download (228.48KB)

Mode d'emploi SAUTER FC (FR)

Download (657.96KB)

Brochure SAUTER FC (EN)

Download (221.11KB)

Usage manual SAUTER FC (EN)

Download (643.66KB)

Dépliant SAUTER FC (IT)

Download (222.85KB)

Istruzioni d’uso SAUTER FC (IT)

Download (651.95KB)

Einzelprospekt SAUTER FC (GE)

Download (230.28KB)

Betriebsanleitung SAUTER FC (GE)

Download (691.99KB)

Folleto SAUTER FC (ES)

Download (224.79KB)

Instrucciones SAUTER FC (ES)

Download (631.17KB)

Specific references

EAN13: 4045761160842

Ball shaped head for pressure and fracture...

€130.00

Stainless steel handle bar with rubber...

€105.00

High speed data transfer software AFH FAST

€115.00

Force-displacement analysis software AFH-FD

€710.00

Standard attachments for Force gauges...

€122.00

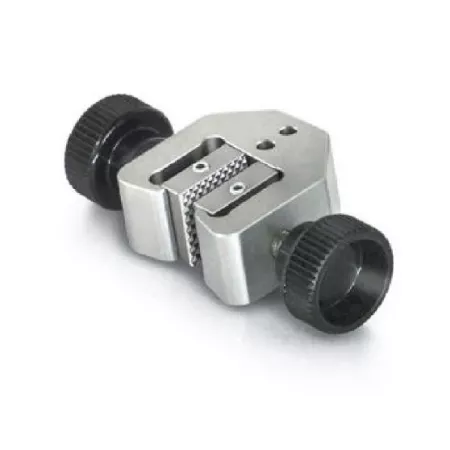

Screw-in tension clamp to 100 N - AD 9001
