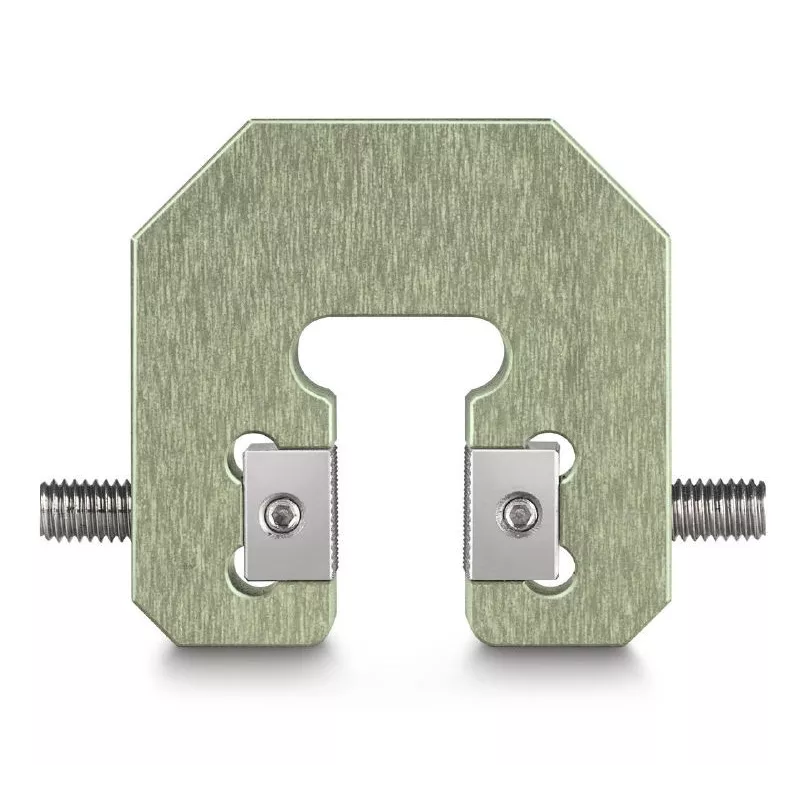

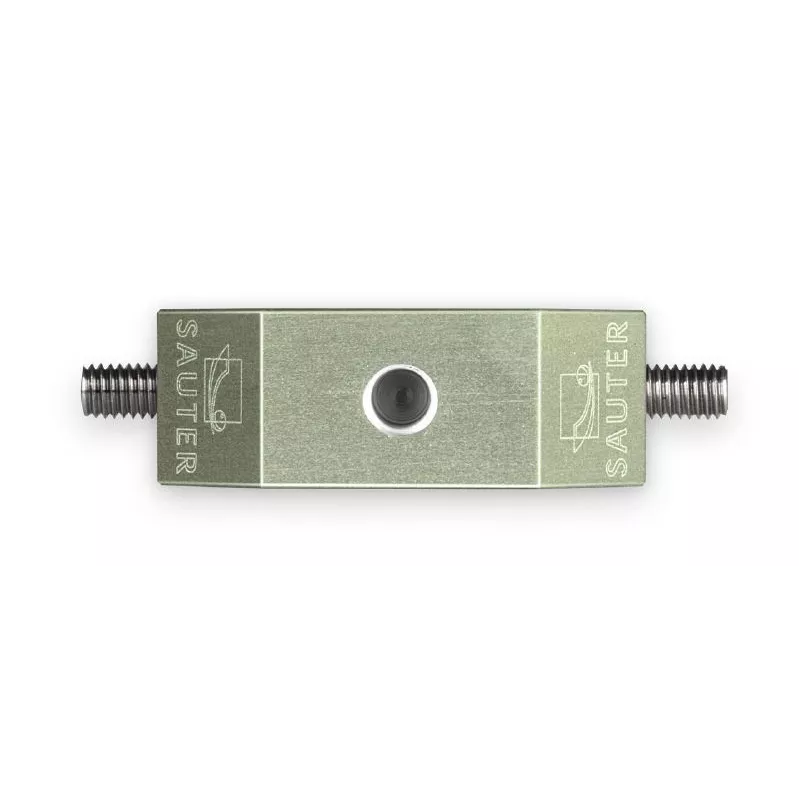

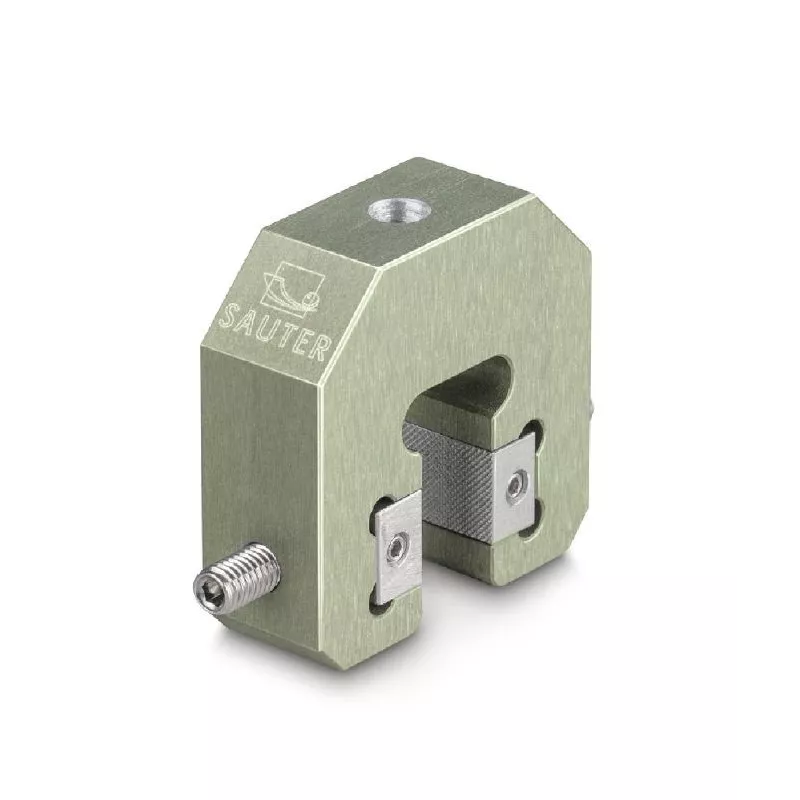

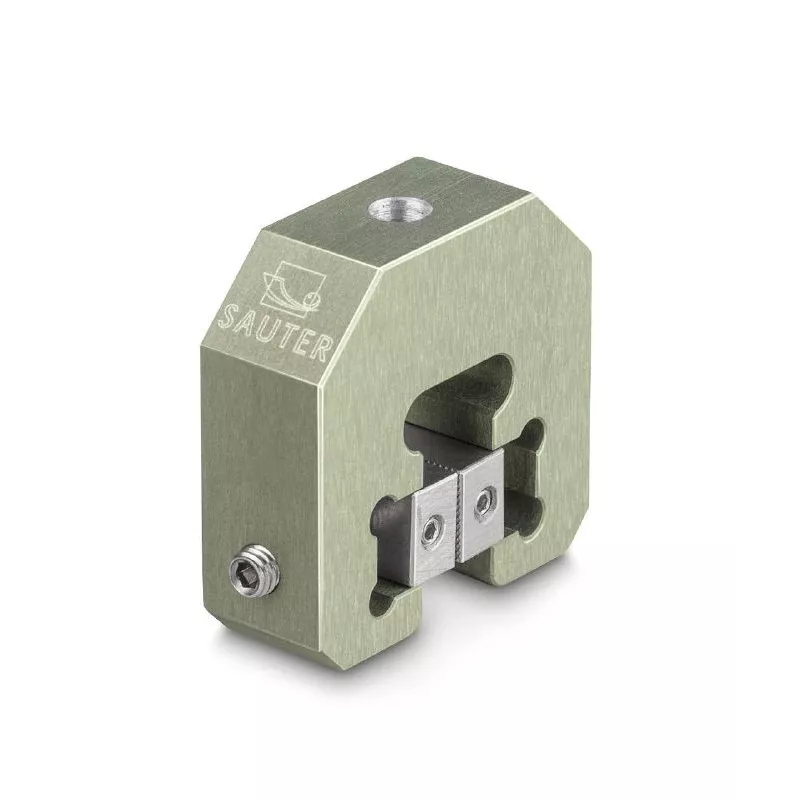

Screw-in tension clamp SAUTER AE 500

€195.00 Tax excluded
Condition
New
Reference
AE 500

SAUTER AE 500 ► Quickly fittable universal screw tension clamp for tension and compression testing for a force range up to 500 N

Read the full description

Available (20 Items)
Rating:
(0)
Obtain technical data

Description

  • High-quality screw-in tension clamp in the lower force range with enormous flexibility so that they can be adapted quickly to the most varied test objects
  • Solid version for high clamp forces
  • Overall dimensions: 51x41x15 mm
  • Flexible range (width between the jaws) 0–10 mm
  • Jaws with pyramid grip standard, WxH 32×20 mm
  • Jaws with corrugated grip, knurled grip, V-grip for round samples up to 15 mm diameter, plain jaws for you to process yourself and jaws with rubber coating (1 mm), and many more versions all available as options, please ask for details
  • The modular design means that you can adjust, expand and clean the clamps quickly
  • With the practical threaded rods with internal hex, the clamps can be quickly adapted to meet particular requirements, test objects, operational environments, e.g. test bench or measuring device, etc.
  • Can be used with all SAUTER force-measuring devices or test bench systems
  • There is an M6 thread on the top of the clamp to fix the clamp onto the force-measuring device
  • For tension and compression testing up to 500 N
  • Overload protection: 150 % of [Max]
  • Scope of delivery: 1 clamp with 2 jaws with pyramid grip
  • When placing individual orders for clamps, please note: Clamps may require adapters to enable them to be mounted. Please let us know which devices are to be used with the clamp. In this way we will be able to deliver the appropriate adapters with the clamp

Brochure SAUTER AE 500 (FR)

Download (263.14KB)

Brochure SAUTER TVL (FR)

Download (232.98KB)

Mode d'emploi SAUTER FH (FR)

Download (684.22KB)

Mode d'emploi SAUTER TVL (FR)

Download (149.32KB)

Brochure SAUTER AE 500 (EN)

Download (254.03KB)

Brochure SAUTER TVL (EN)

Download (223.96KB)

Usage manual SAUTER FH (EN)

Download (676.19KB)

Usage manual SAUTER TVL (EN)

Download (146.87KB)

Einzelprospekt AE 500 (GE)

Download (263.38KB)

Einzelprospekt SAUTER TVL (GE)

Download (237.66KB)

Betriebsan. SAUTER AE 500 (GE)

Download (327.2KB)

Betriebsan. SAUTER FH (GE)

Download (681.71KB)

Betriebsan. SAUTER TVL (GE)

Download (147.26KB)

Folleto SAUTER AE 500 (ES)

Download (258.25KB)

Folleto SAUTER TVL (ES)

Download (226.59KB)

Instrucciones SAUTER FH (ES)

Download (683.2KB)

Instrucciones SAUTER TVL (ES)

Download (232.98KB)
