Metallurgical inverse microscope OLM-1 | Balance Express

Metallurgical inverse microscope OLM-1

€3,950.00 Tax excluded

€3,000.00 - €3,950.00

Condition

New

Reference

OLM 171

KERN OLM-1 ► The inverted metallurgical microscope for professional applications

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

InverseMicroscope InvertedMicroscope MetallurgicalMicroscope MetallurgicalInverseMicroscope InvertedMetallurgicalMicroscop OLM-1 OLM OLM171

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

OLM 171 See specifications

Characteristics

Optical sistem:

Infini

Tube:

Trinocular

Illumination:

12 V/50 W Halogen (incident)

Objective:

5x / 10x / 20x / 50x

Eyepiece:

WF 10 x Ø 22 mm

Quality of objectives:

Plan corrigé à l‘infini

€3,950.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

OLM 170

Characteristics

Optical sistem:

Infini

Tube:

Trinocular

Illumination:

5W LED (lumière incidente)

Objective:

5x / 10x / 20x / 50x

Eyepiece:

HWF 10 x Ø 20 mm

Quality of objectives:

Plan corrigé à l‘infini

€3,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

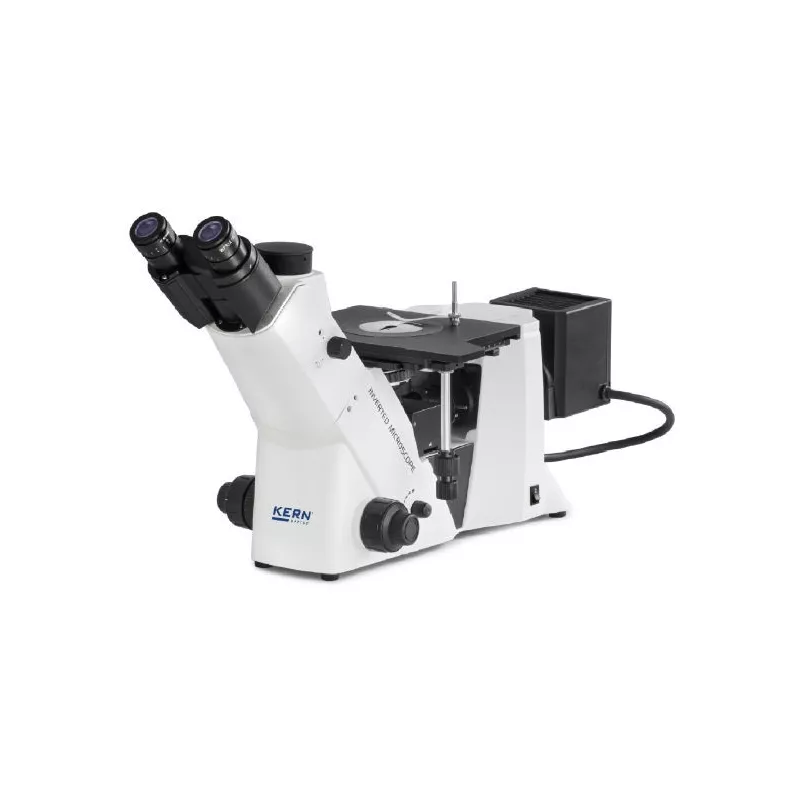

The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry.
Strong and continuously adjustable 50W halogen illumination unit ensures the optimum illumination of the materials to be tested.
As standard, the OLM range is fitted with a trinocular eyepiece tube.

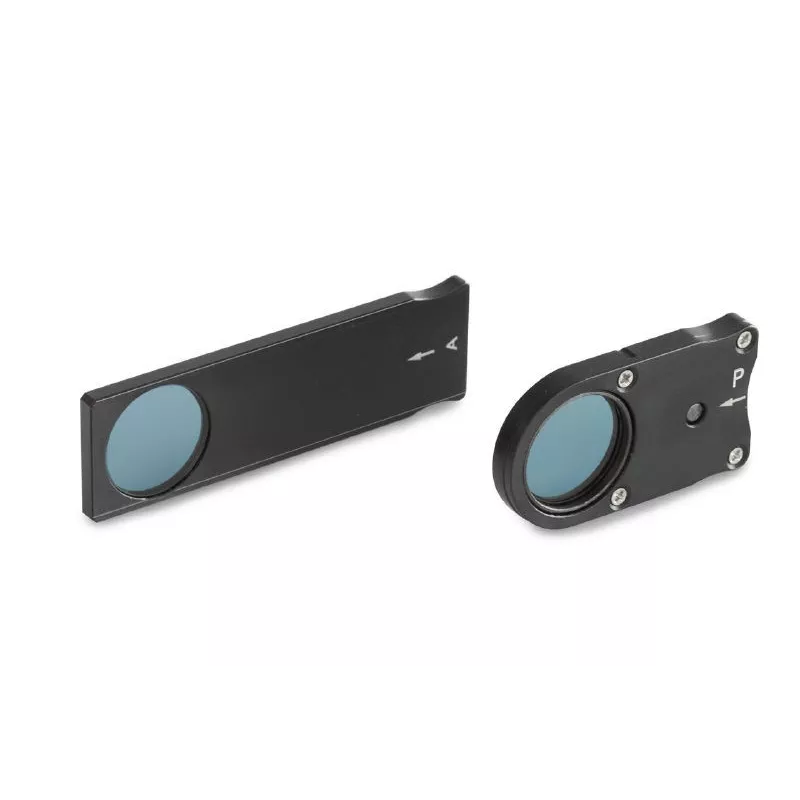

A simple polarising unit (analyser and polariser) is included with delivery.

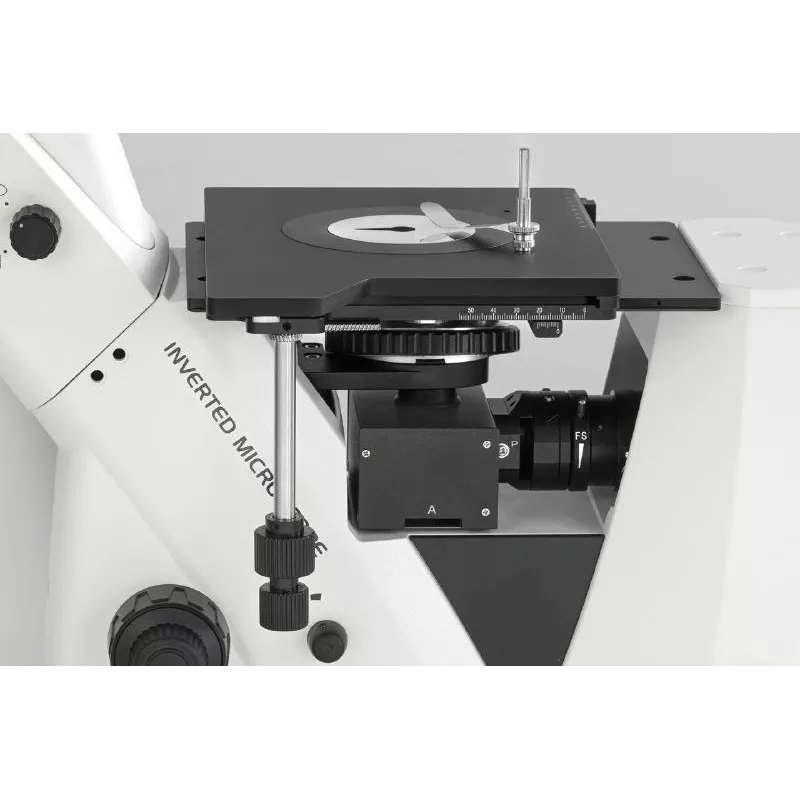

A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.
Further options such as, for example, a large selection of objectives can be integrated as accessories.
A dust cover as well as user instructions are included with the delivery.

Downloads

Brochure KERN OLM-1 (FR)

Download (1.51MB)

Brochure KERN OLM-1 (EN)

Download (717KB)

Usage manual KERN OLM-1 (EN)

Download (1.39MB)

Dépliant KERN OLM-1 (IT)

Download (1.5MB)

Einzelprospekt KERN OLM-1 (GE)

Download (709.46KB)

Betriebsan. KERN OLM-1 (GE)

Download (1.48MB)

Folleto KERN OLM-1 (ES)

Download (1.51MB)

Halogen spare bulb 12 V/50 W (incident...

€25.00

Ocular (Ø 30.0 mm): HWF 10× / Ø 22.0 mm...

€100.00

Filter blue - OBB-A1510

€25.00

Filter green - OBB-A1511

€25.00

Filter yellow - OBB-A1512

€30.00

Filter grey - OBB-A1513

€25.00

C-Mount camera adapter 1.00x - OBB-A1514

€130.00

C-Mount camera adapter 0.50x - OBB-A1515

€200.00

Ocular (Ø mm): HWF 10× / Ø 22.0 mm...

€155.00

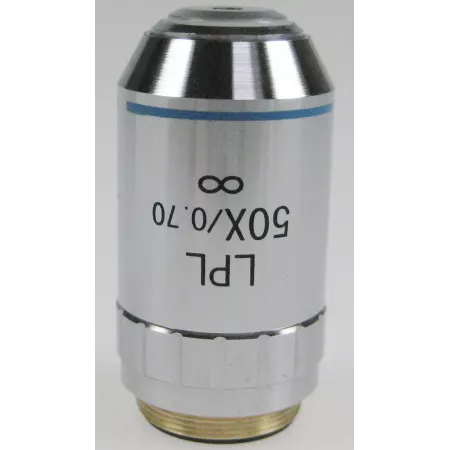

Infinity Plan achromatic objective,...
