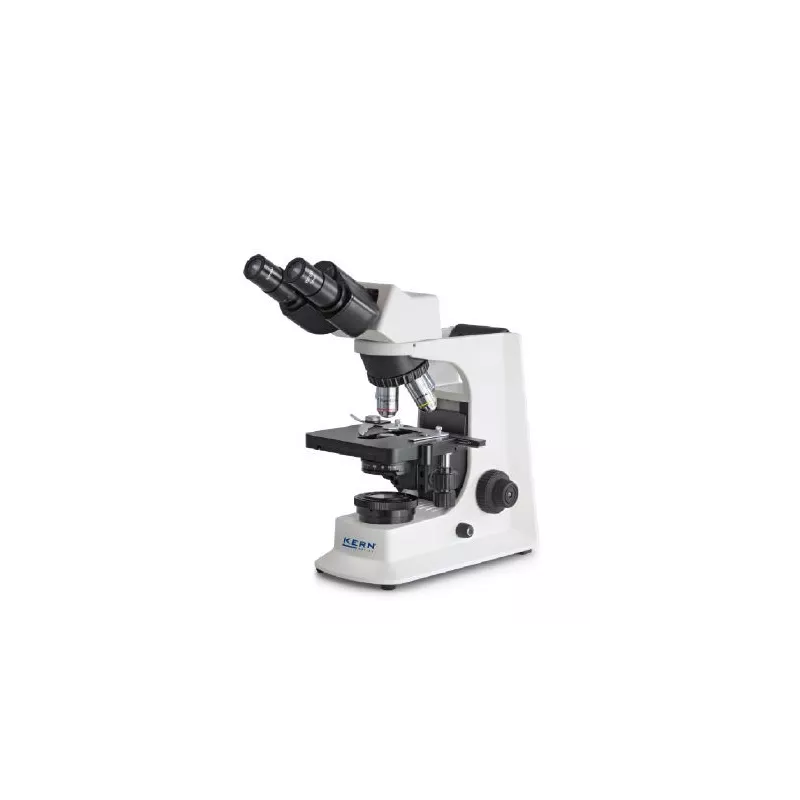

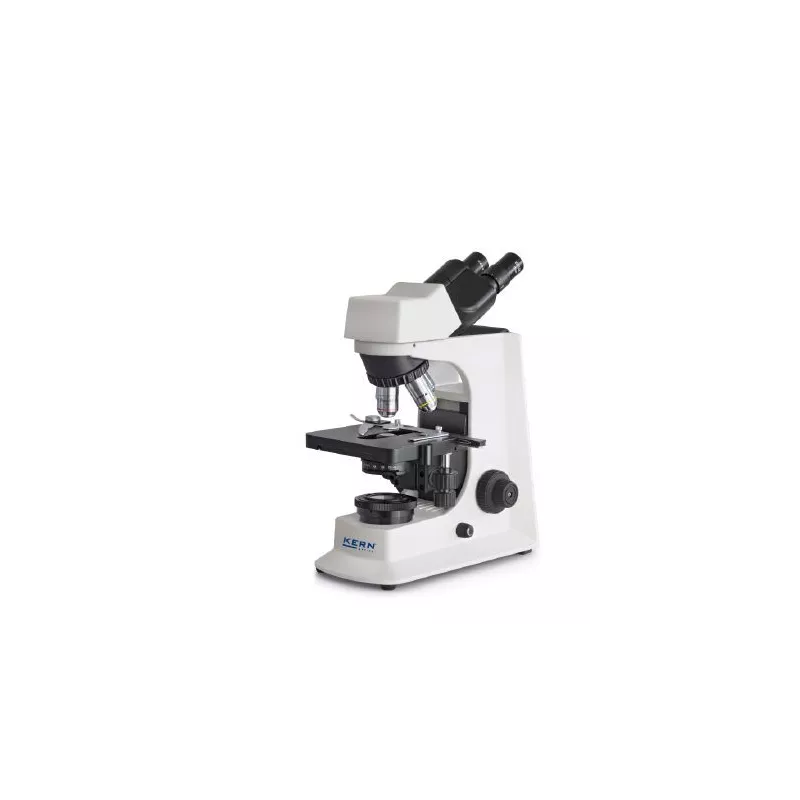

Transmitted light microscope OBL-12/OBL-13

€765.00 - €1,020.00
Description
- The OBL-1 series stands out through its infinity optical unit and is therefore ideally suited for all transmitted illumination applications for the most demanding users. The robust and ergonomic stand base guarantees safe and comfortable working
- Depending on the application, there is a choice of models with strong, continuously dimmable 3 W LED or 20 W halogen illumination (Philips)
- The fixed, pre-centred and focusable 1.25 ABBE condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre
- The large mechanical stage table and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides

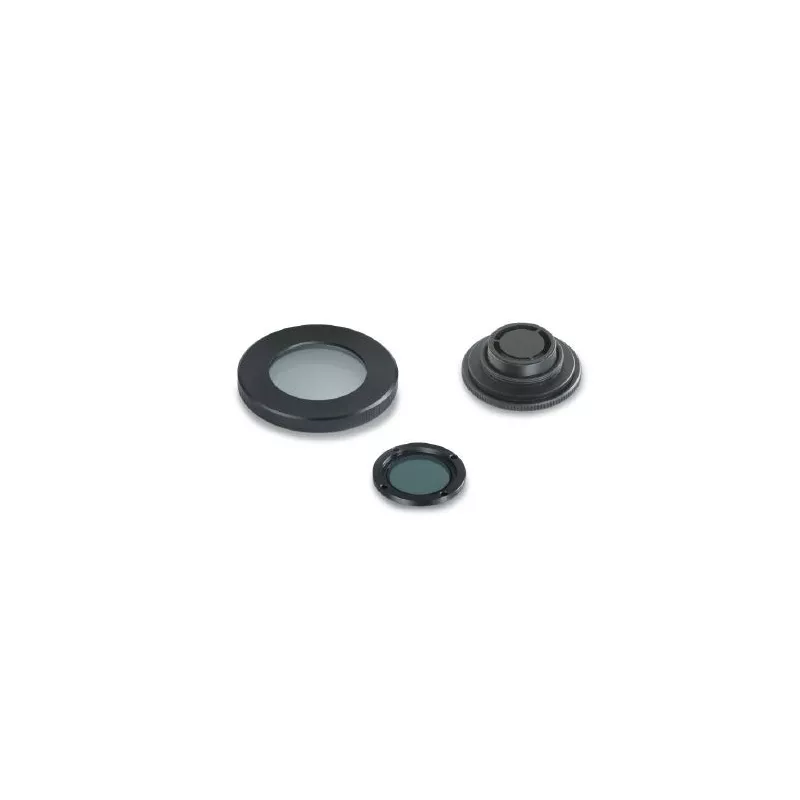

- A large selection of eyepieces, objectives and colour filters as well as a darkfield condenser, a simple polarising unit, different phase contrast kits through to HBO and LED fluorescence units are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
- A C-mount adapter is required to connect a camera to the trinocular version. You can select this adapter from the following model outfit list
Scope of application
Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, sewage treatment plants, water analysis, breweries
Applications/Samples
Translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue)
Technical data
- Infinity optical system
- 4-fold lens revolving unit
- Siedentopf 30° inclined, 360° rotatable
- Dioptre compensation one-sided
- Overall dimensions W×D×H 395×200×380 mm
- Net weight approx. 6,7 kg
For information on the accessories which are supplied as standard, please see the individual brochures for the models, see document downloads in the table
Brochure KERN OBL (FR)
Download (1.52MB)Mode d'emploi KERN OBL (FR)
Download (1.95MB)Brochure KERN OBL (EN)
Download (723.03KB)Usage manual KERN OBL (EN)
Download (1.67MB)Einzelprospekt KERN OBL (GE)
Download (717.09KB)Betriebsanleitung KERN OBL (GE)
Download (1.78MB)Specific references
- EAN13
- 4045761163089
You might also like
C-Mount camera adapter 1.00x - OBB-A1142

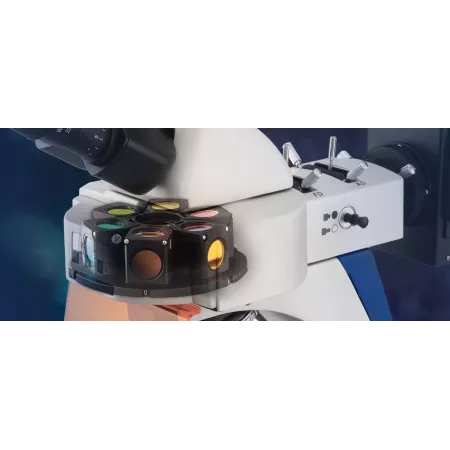

Fluorescence unit - OBB-A1157
Infinity E-Plan-objective 100.0× (oil)...
Infinity E-Plan-objective, 10.0/0.30 W.D....
Infinity E-Plan-objective 40.0× (spring) -...
Infinity E-Plan-objective, 4.0/0.10 W.D....
Filter yellow for OBF-1, OBL-1, OBN-13,...
Filter grey for OBF-1, OBL-1, OBN-13,...
Colour filter green - OBB-A1188

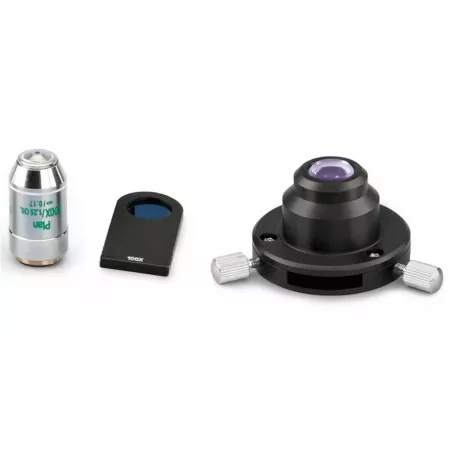

Independent phase contrast unit,...

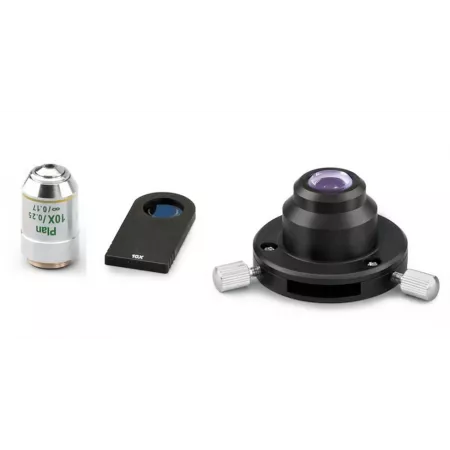

Independent phase contrast unit,...

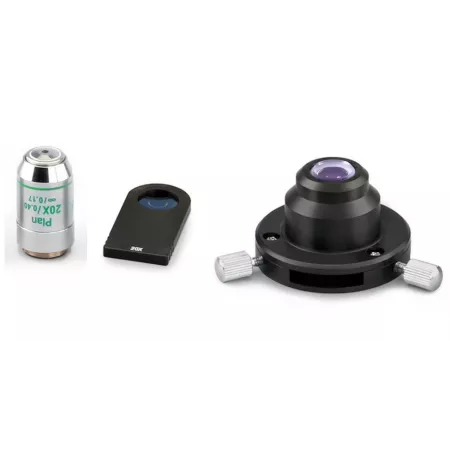

Independent phase contrast unit,...

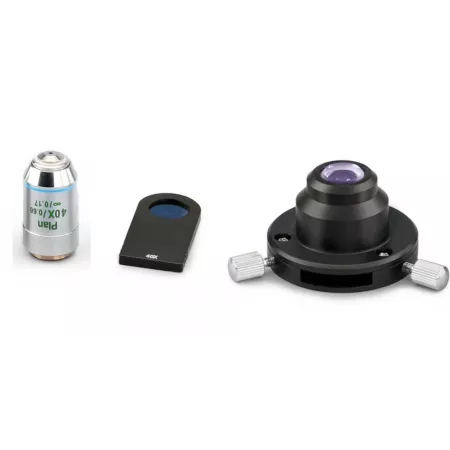

Independent phase contrast unit,...
