Digital coating thickness gauge SAUTER TC

€390.00 Tax excluded

€390.00 - €510.00

Condition

New

Reference

TC 1250-0.1F

SAUTER TC ► Your constant companion - compact and easy to use

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

DigitalCoatingThicknessGauge CoatingThicknessGauge ThicknessGauge Coating Thickness CoatingThickness TC SAUTER TC1250-0.1F TC1250-0.1N TC1250-0.1FN TC1250-0.1FN-CAR

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TC 1250-0.1F See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1250 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Coatings on steel and iron

Smallest sample surface, convex (radius) mm:

1.5 mm

Smallest sample surface,concave (radius) mm:

25 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€390.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TC 1250-0.1N See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1250 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Insulating coatings on non-magnetic metals

Smallest sample surface, convex (radius) mm:

3 mm

Smallest sample surface,concave (radius) mm:

50 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€435.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TC 1250-0.1FN See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1250 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Combination instrument: F, N

Smallest sample surface, convex (radius) mm:

1.5 mm

Smallest sample surface,concave (radius) mm:

25 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€500.00 HT

Price HT

Stock

Shipping time

Action

Unfortunately not available at this time!

Model

Characteristics

TC 1250-0.1FN-CAR See specifications

Characteristics

Measuring range [Max] µm:

100 µm | 1250 µm

Readout [d] µm:

0,1 µm | 1 µm

Test objet:

Combination instrument: F, N

Smallest sample surface, convex (radius) mm:

1.5 mm

Smallest sample surface,concave (radius) mm:

25 mm

Smallest sample surface, flat (radius) mm:

6 mm

Minimal base thickness:

300 µm

Option Factory calibration certificate:

€510.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

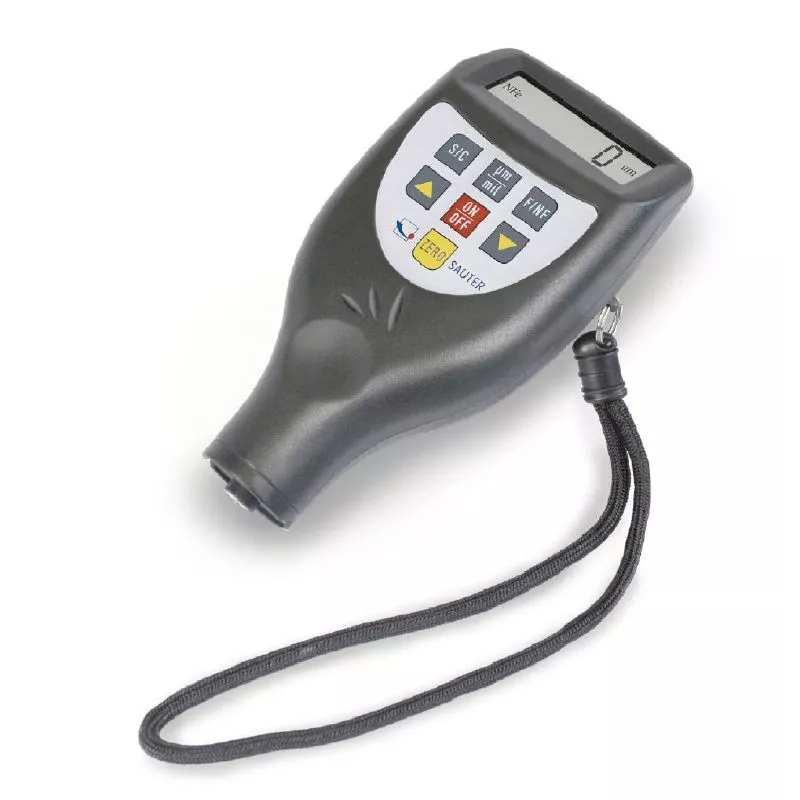

Ergonomic design for easy handling
Data interface RS-232, included
Base plate and calibration foils included

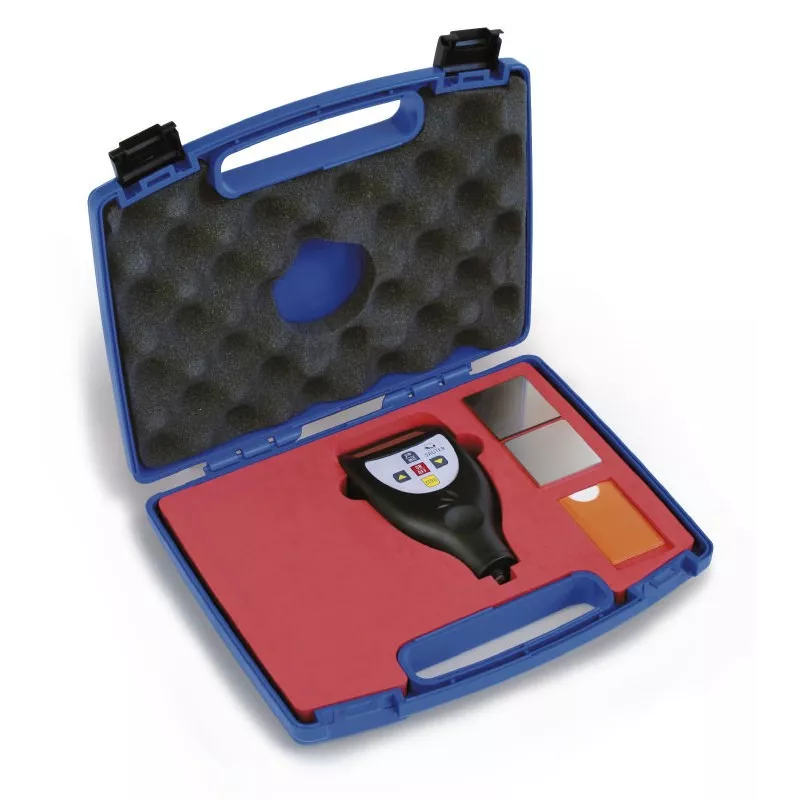

Delivered in a hard carrying case
Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
Selectable measuring units: µm, inch (mil)

SAUTER TC 1250-0.1FN-CAR.:

Specifically designed for the automobile industry
Automatic recognition of measuring mode (F or N): "point and shoot"
Simple and convenient 1-key operation

Downloads

Brochure SAUTER TC (FR)

Download (217.36KB)

Mode d'emploi SAUTER TC (FR)

Download (250.23KB)

Brochure SAUTER TC (EN)

Download (208.17KB)

Usage manual SAUTER TC (EN)

Download (245.92KB)

Dépliant SAUTER TC (IT)

Download (209.32KB)

Istruzioni d’uso SAUTER TC (IT)

Download (246.05KB)

Einzelprospekt SAUTER TC (GE)

Download (217.27KB)

Betriebsanleitung SAUTER TC (GE)

Download (252.75KB)

Folleto SAUTER TC (ES)

Download (211.22KB)

Instrucciones SAUTER TC (ES)

Download (249.44KB)

Specific references

EAN13: 4045761140059

Data transfer software interface cable...

€100.00

Calibration foils for increased measuring...

€115.00
