Tensile force gauge KERN HFC | Balance Express

Tensile force gauge KERN HFC

€1,070.00 Save 10%

€963.00

€963.00 - €1,521.00

Condition

New

Reference

HFC 600K-1

KERN HFC ► Compact crane scale for use in harsh environmental conditions or where space is limited, with convenient hand-held terminal

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

Balance Scale CraneScale HFC ForceGauge Force Gauge Tensile KERN KERNHFC Crane TensileForceGauge

Model

Characteristics

Certificate / Verification

Price HT

Stock

Shipping time

Model

Characteristics

Certificate / Verification

HFC 600K-1 See specifications

Characteristics

Weighing range [Max]:

600 kg

Readout [d]:

200 g

Dimensions housing (WxDxH):

90 mm x 62 mm x 255 mm

Rechargeable battery:

Accu optional - intern

Certificate / Verification

DAkkS Calibration Certificate optional:

€963.00 HT €1,070.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

HFC 1T-4 See specifications

Characteristics

Weighing range [Max]:

1000 kg (1t)

Readout [d]:

500 g

Dimensions housing (WxDxH):

90 mm x 62 mm x 255 mm

Rechargeable battery:

Accu optional - intern

Certificate / Verification

DAkkS Calibration Certificate optional:

€963.00 HT €1,070.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

HFC 3T-3 See specifications

Characteristics

Weighing range [Max]:

3000 kg (3t)

Readout [d]:

1000 g (1kg)

Dimensions housing (WxDxH):

90 mm x 62 mm x 255 mm

Rechargeable battery:

Accu optional - intern

Certificate / Verification

DAkkS Calibration Certificate optional:

€1,026.00 HT €1,140.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

HFC 5T-3 See specifications

Characteristics

Weighing range [Max]:

5000 kg (5t)

Readout [d]:

2000 g (2kg)

Dimensions housing (WxDxH):

90 mm x 62 mm x 255 mm

Rechargeable battery:

Accu optional - intern

Certificate / Verification

DAkkS Calibration Certificate optional:

€1,098.00 HT €1,220.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

HFC 10T-3

Characteristics

Weighing range [Max]:

10000 kg (10t)

Readout [d]:

5000 g (5kg)

Dimensions housing (WxDxH):

90 mm x 72 mm x 275 mm

Rechargeable battery:

Accu optional - intern

Certificate / Verification

DAkkS Calibration Certificate optional:

€1,521.00 HT €1,690.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
Peak load display (peak hold)
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed

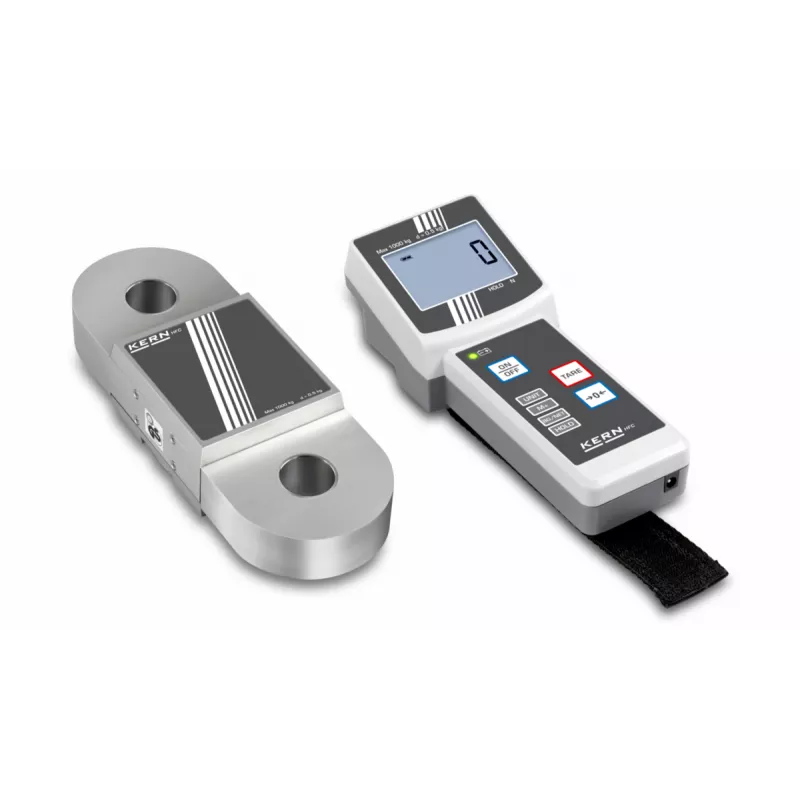

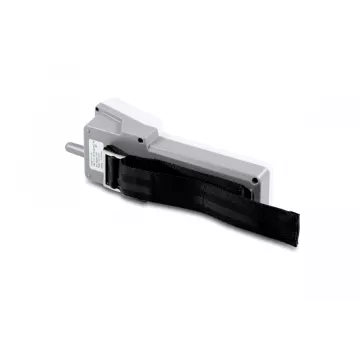

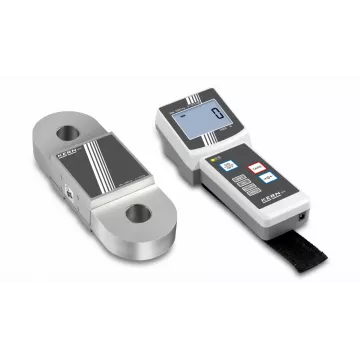

Display device with integrated radio module, which the user can carry around with him, thanks to the convenient hand strap. In this way the weighing data can always be read off the display device by the user, even when the user is a long way from the load receptor (force gauge) or under poor lighting conditions. Standard. Range up to 100 m. All functions can be selected. LCD display, digit height 23 mm, Rechargeable battery pack internal, standard. operating time up to 30 h without backlight, charging time approx. 12 h. Can be re-ordered, KERN HFC-A01
Dimensions Housing (display device) W×D×H 88×64×256 mm
Material and design of housing/load support, models with
- [Max] ≤ 3 t: aluminium/stainless steel bearing
- [Max] > 3 t: steel/steel

Downloads

Brochure KERN HFC (FR)

Download (209.1KB)

Mode d'emploi KERN HFC (FR)

Download (1.54MB)

Brochure KERN HFC (EN)

Download (209.1KB)

Usage manual KERN HFC (EN)

Download (1.55MB)

Dépliant KERN HFC (IT)

Download (203.81KB)

Istruzioni d’uso KERN HFC (IT)

Download (1.53MB)

Einzelprospekt KERN HFC (GE)

Download (207.25KB)

Betriebsanleitung KERN HFC (GE)

Download (1.57MB)

Folleto KERN HFC (ES)

Download (205.23KB)

Instrucciones KERN HFC (ES)

Download (1.51MB)
