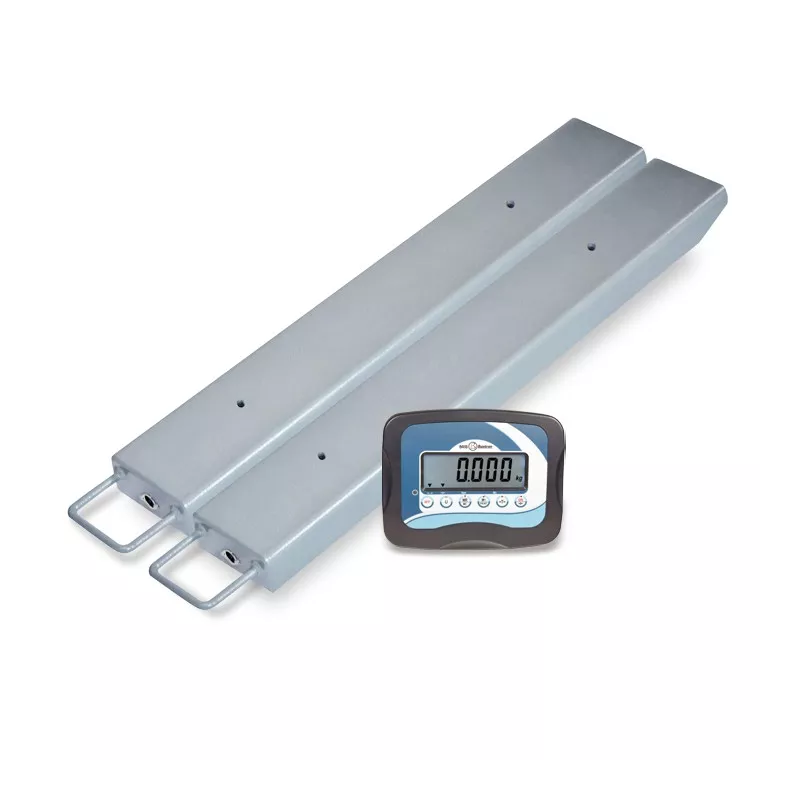

Weighing bars in painted steel (3000kg) BAXTRAN XFI

FEATURES:

• Weighing bars.
• On-ground installation.
• They are supplied in pairs.
• Painted steel.

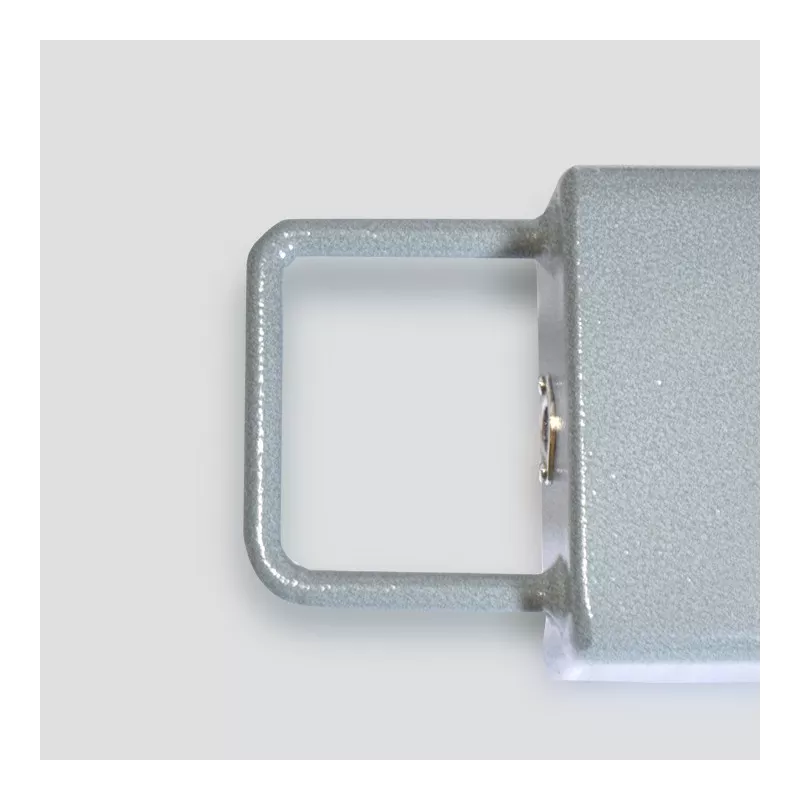

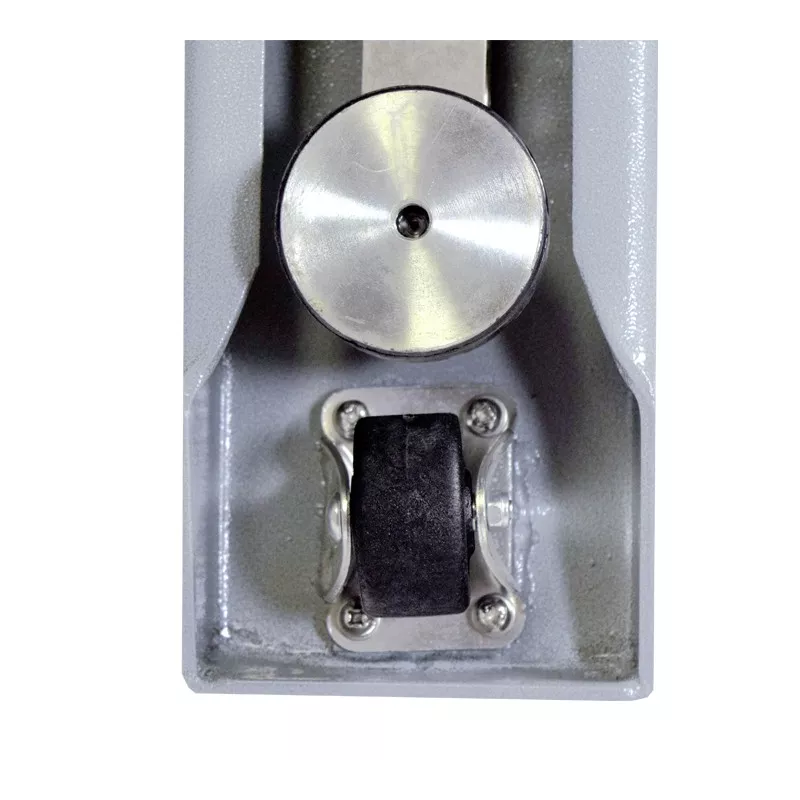

• Bars with handles and wheels for their transport. Their lower part is completely uncovered.

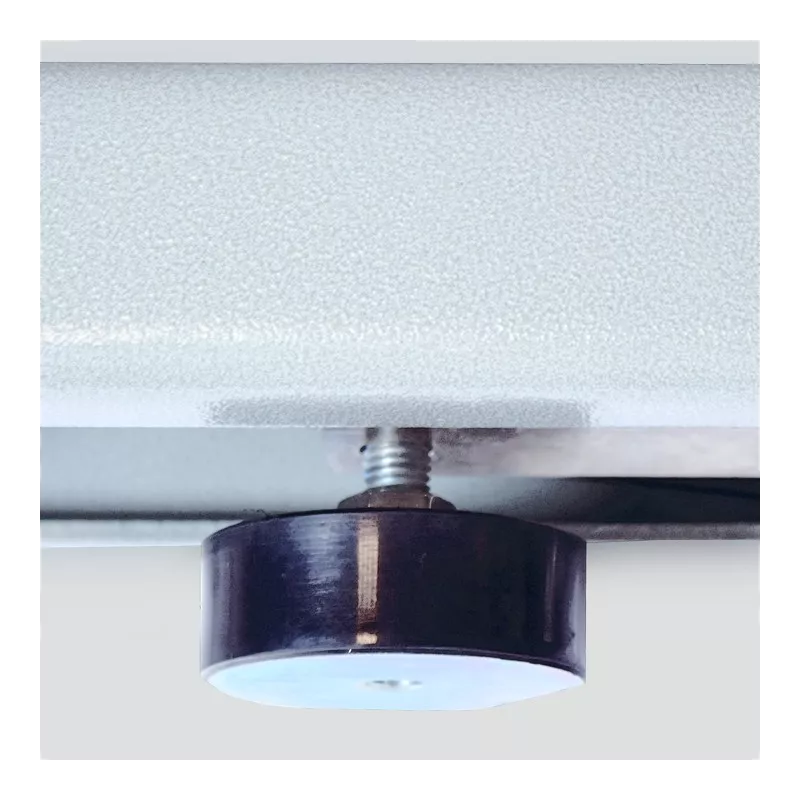

• Adjustable levelling feet. Version with rigid feet (XFI803Z) and pivot feet (XFI1203Z) which help to achieve a lesser bar distortion.
• Load cells in aluminium, IP68.
• Interconnecting cables with connector.
• ABS indicator, model BR15.
• Backlight LCD display with six 30 mm height digits.
• Backlight of the display with 3 types: automatic, activated and deactivated.
• IP54 protection.
• Waterproof keyboard with 5 function keys and ON/OFF keys.
• Power supply with adaptor AC/DC 110-240Vac 50-60 Hz.
• Rechargeable internal battery 6V/4Ah.
• RS232 output PC and print formats.
• Auto switch off (programmable: from 1 to 99 minutes).
• 2 meters of cable for each weighing bar with a single connector.

FUNCTIONS:

• Accumulation
• Totalization
• Piece counting
• Zero
• Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero
• Checkweighing function visual and alarm signals
• Three speeds of AD converter (high, medium and low)
• Gross/Net
• Tare
