Display device (rail-mounted module) CE Hx | Balance Express

Display device (rail-mounted module) CE Hx

€480.00 Tax excluded

€480.00 - €590.00

Condition

New

Reference

CE HSA

KERN CE Hx ► Super compact display device (rail-mounted module) for installation in switch cabinets

Read the full description

Click here to view product combination list.

Rating:

(0)

Obtain technical data

KERN DisplayUnit RecordingWeighingData WeighingData Rail-mountedModule SwitchCabinet KERNCEHx KERNCE CEHx CE CEHSA CEHSE

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CE HSA

Characteristics

Input voltage multipolar:

-1 mV to +16 mV

Input voltage biipolar:

-16 mV to +16 mV

Maximum resolution [d]:

10.000

Communication interface:

USB

Analogue current output:

0/4-20/24mA

€480.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CE HSE

Characteristics

Input voltage multipolar:

-1 mV to +16 mV

Input voltage biipolar:

-16 mV to +16 mV

Maximum resolution [d]:

10.000

Communication interface:

USB, Ethernet

Analogue current output:

€540.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CE HSP

Characteristics

Input voltage multipolar:

-1 mV to +16 mV

Input voltage biipolar:

-16 mV to +16 mV

Maximum resolution [d]:

10.000

Communication interface:

USB, Profibus

Analogue current output:

€590.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CE HSR

Characteristics

Input voltage multipolar:

-1 mV to +16 mV

Input voltage biipolar:

-16 mV to +16 mV

Maximum resolution [d]:

10.000

Communication interface:

USB, RS232/422

Analogue current output:

€560.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Compact display unit for recording weighing data using strain gauge load cells, e.g. in industrial applications
With its small size it can be installed in switch cabinets without taking up much space
Thanks to the many interface variants, the modules can be integrated easily into existing infrastructures and systems

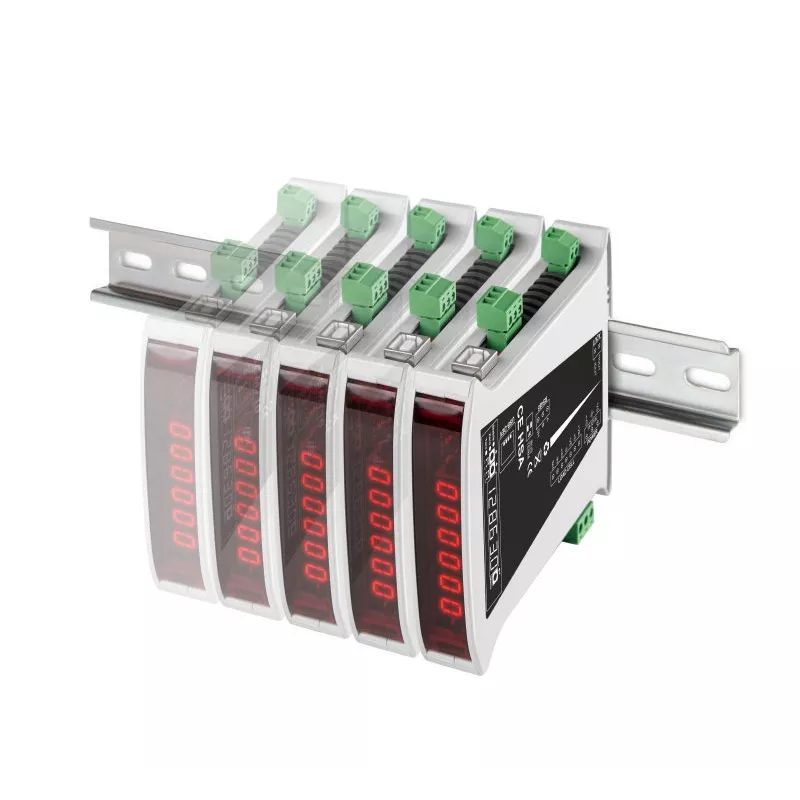

The modules can either be used individually or as a Buslink system with a total of up to 332 DIN rail modules
The module can be configured easily using a PC connected to the system with the software we deliver with the product
Bright LED display for visual monitoring and for adjusting settings
Time-saving G-Cal TM technology (geographical calibration) for rapid, accurate calibration without using weights, convenient for use across the world via a network or the internet
Convenient communication using remote devices
Backup and restore function using the USB connection
Supports different industry protocols such as, for example Ethernet IP, Modbus TCP, Modbus RTU, FINS and Profibus DP
Extremely high measuring frequency is possible, up to 1600 data strings/s
Internal resolution 24 Bit
Large display YKD-A02: only suitable for CE HSR

Downloads

Brochure KERN CE Hx (FR)

Download (255.85KB)

Brochure KERN CE Hx (EN)

Download (250.43KB)

Usage manual KERN CE Hx (EN)

Download (1.6MB)

Dépliant KERN CE Hx (IT)

Download (253.71KB)

Einzelprospekt KERN CE Hx (GE)

Download (234.66KB)

Specific references

EAN13: 4045761236035
